FSS Rupture 198678, M7.8047805, Start 2026/05/12, 1 yr Results

Table Of Contents

• Probabilities Summary Table
• Magnitude Number Distribution
  • 1 Year Magnitude Number Distribution
  • 1 Month Magnitude Number Distribution
  • 1 Week Magnitude Number Distribution
  • 1 Day Magnitude Number Distribution
  • 1 Hour Magnitude Number Distribution
• Hazard Change Over Time
  • M≥5.0 Hazard Change Over Time
  • M≥6.0 Hazard Change Over Time
  • M≥7.0 Hazard Change Over Time
  • M≥8.0 Hazard Change Over Time
• Trigger Rupture Fault Map
• Trigger Rupture Depth Map
• Fault Distances To Triggers
• Individual Simulated Catalog Maps
• Section Participation
  • Section Participation Plots
  • Supra-Seismogenic Parent Sections Table
  • M≥6.5 Parent Sections Table
  • M≥7 Parent Sections Table
  • M≥7.5 Parent Sections Table
  • M≥8 Parent Sections Table
• Fault Magnitude-Probability Distributions
• Gridded Nucleation
• JSON Input File

Probabilities Summary Table

(top)

Magnitude Number Distribution

(top)

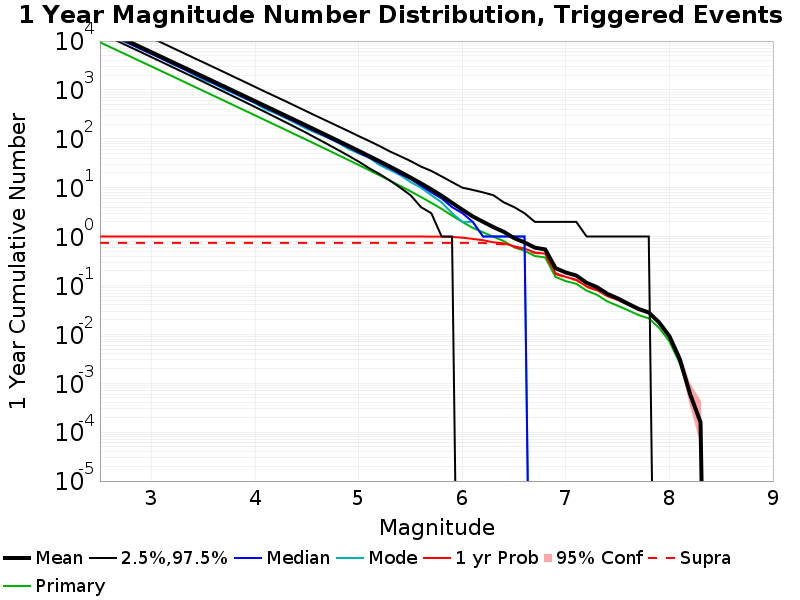

1 Year Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 25204 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 25204 catalogs
• Median (thin blue line): median expected number across all 25204 catalogs
• Mode (thin cyan line): modal expected number across all 25204 catalogs
• 1 yr Probability (thin red line): 1 year probability calculated as the fraction of catalogs with at least 1 occurrence
• 1 yr Supraseismogenic Probability (thin dashed red line): same as above, but only for supraseismogenic ruptures on explicitly modeled UCERF3 faults
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 25204 catalogs

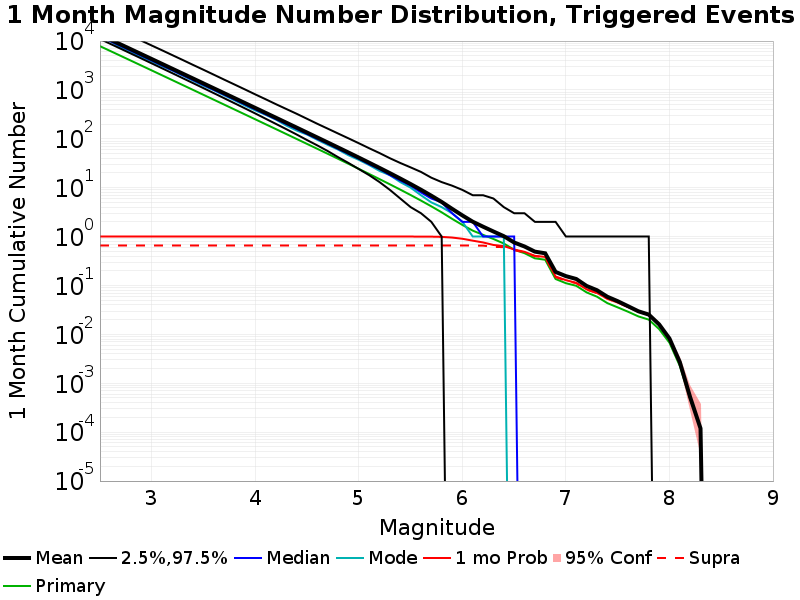

1 Month Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 25204 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 25204 catalogs
• Median (thin blue line): median expected number across all 25204 catalogs
• Mode (thin cyan line): modal expected number across all 25204 catalogs
• 1 mo Probability (thin red line): 1 month probability calculated as the fraction of catalogs with at least 1 occurrence
• 1 mo Supraseismogenic Probability (thin dashed red line): same as above, but only for supraseismogenic ruptures on explicitly modeled UCERF3 faults
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 25204 catalogs

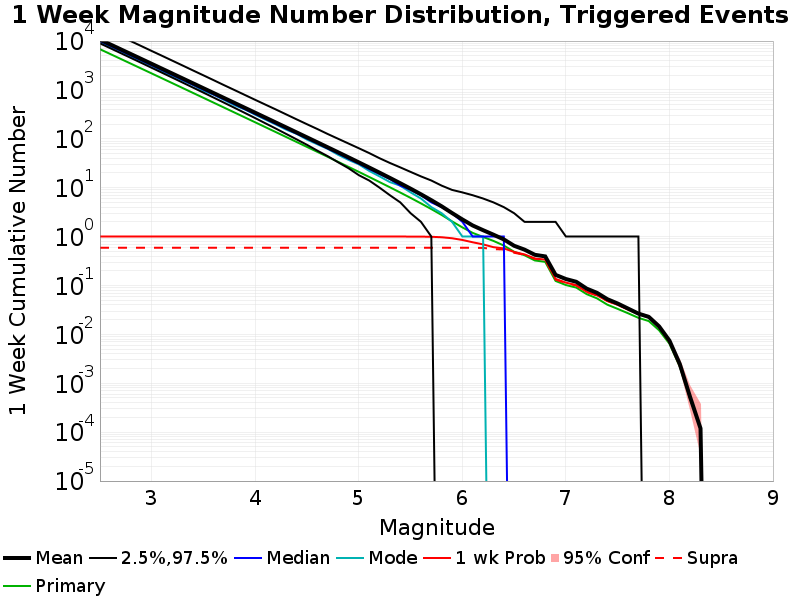

1 Week Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 25204 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 25204 catalogs
• Median (thin blue line): median expected number across all 25204 catalogs
• Mode (thin cyan line): modal expected number across all 25204 catalogs
• 1 wk Probability (thin red line): 1 week probability calculated as the fraction of catalogs with at least 1 occurrence
• 1 wk Supraseismogenic Probability (thin dashed red line): same as above, but only for supraseismogenic ruptures on explicitly modeled UCERF3 faults
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 25204 catalogs

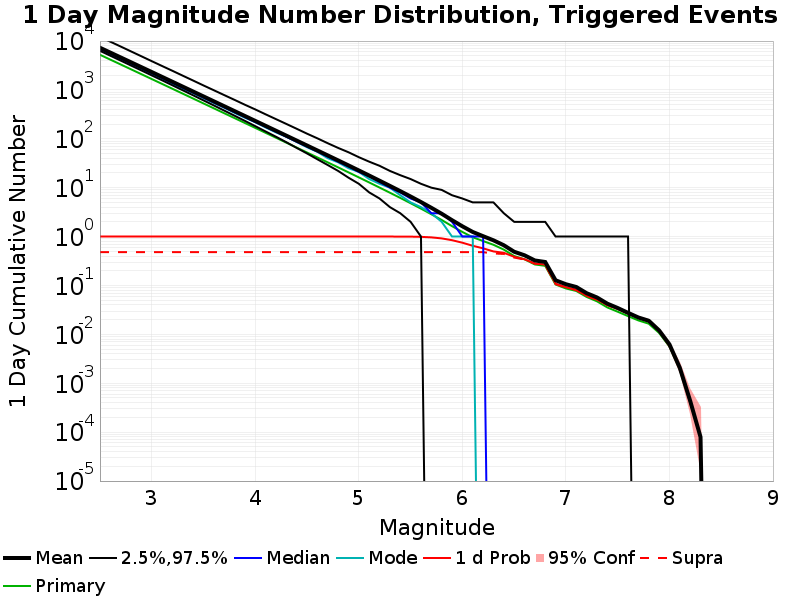

1 Day Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 25204 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 25204 catalogs
• Median (thin blue line): median expected number across all 25204 catalogs
• Mode (thin cyan line): modal expected number across all 25204 catalogs
• 1 d Probability (thin red line): 1 day probability calculated as the fraction of catalogs with at least 1 occurrence
• 1 d Supraseismogenic Probability (thin dashed red line): same as above, but only for supraseismogenic ruptures on explicitly modeled UCERF3 faults
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 25204 catalogs

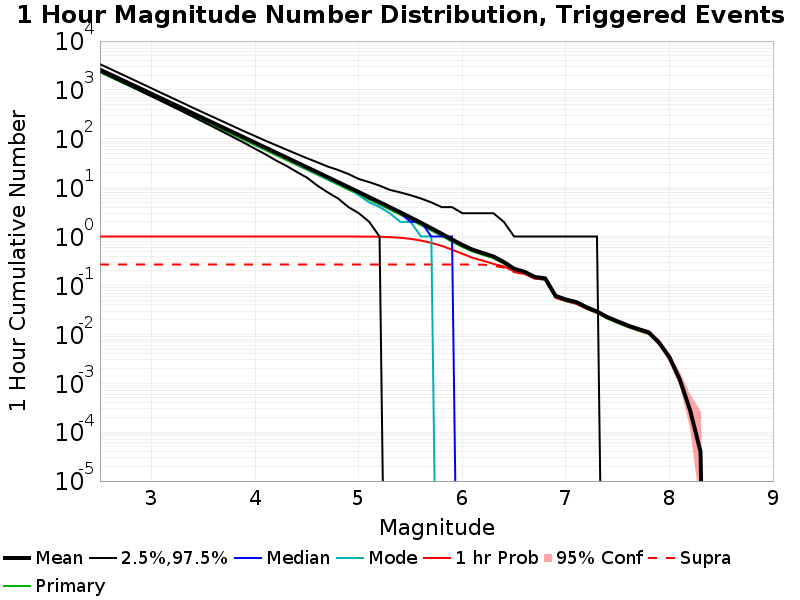

1 Hour Magnitude Number Distribution

(top)

Legend

• Mean (thick black line): mean expected number across all 25204 catalogs
• 2.5%,97.5% (thin black lines): expected number percentiles across all 25204 catalogs
• Median (thin blue line): median expected number across all 25204 catalogs
• Mode (thin cyan line): modal expected number across all 25204 catalogs
• 1 hr Probability (thin red line): 1 hour probability calculated as the fraction of catalogs with at least 1 occurrence
• 1 hr Supraseismogenic Probability (thin dashed red line): same as above, but only for supraseismogenic ruptures on explicitly modeled UCERF3 faults
• 95% Conf (light red shaded region): binomial 95% confidence bounds on probability
• Primary (thin green line): mean expected number from primary triggered aftershocks only (no secondary, tertiary, etc...) across all 25204 catalogs

Hazard Change Over Time

(top)

These plots show how the probability of ruptures of various magnitudes within 100km of any scenario rupture changes over time

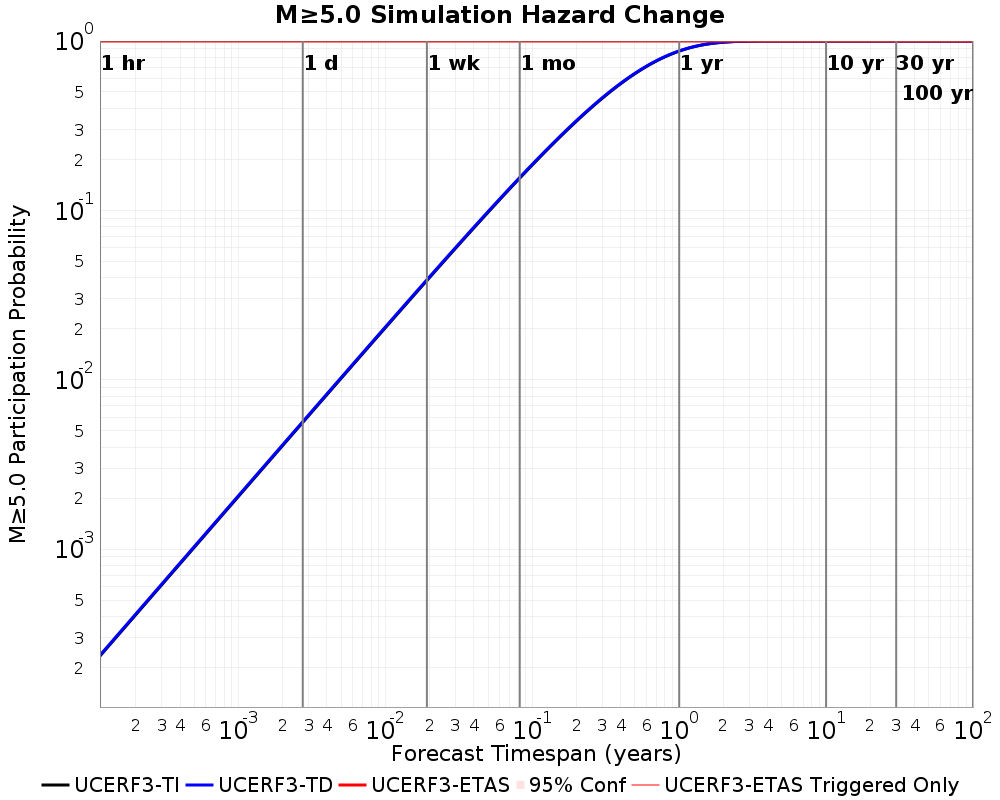

M≥5.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 1 year are included

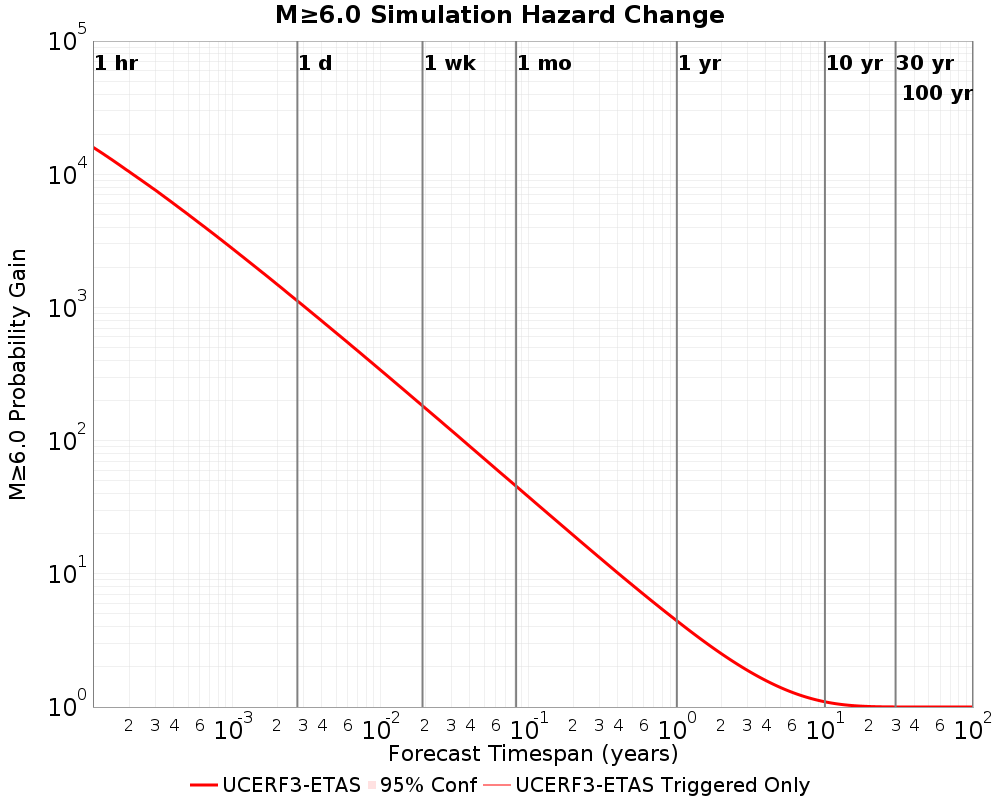

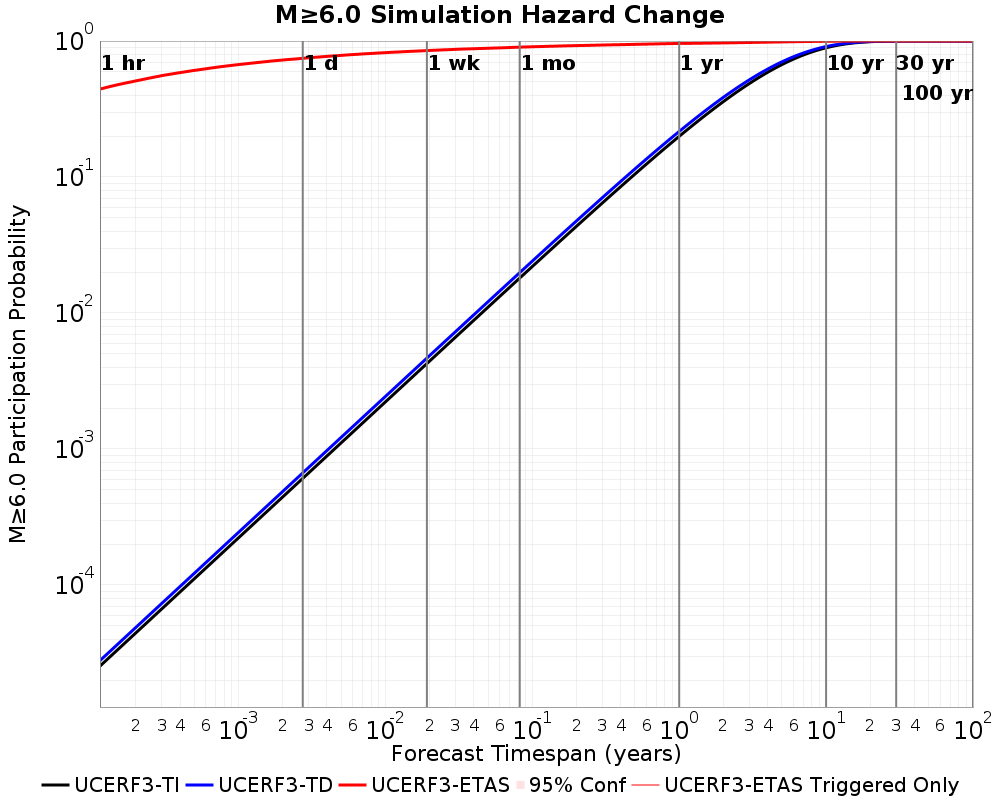

M≥6.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 1 year are included

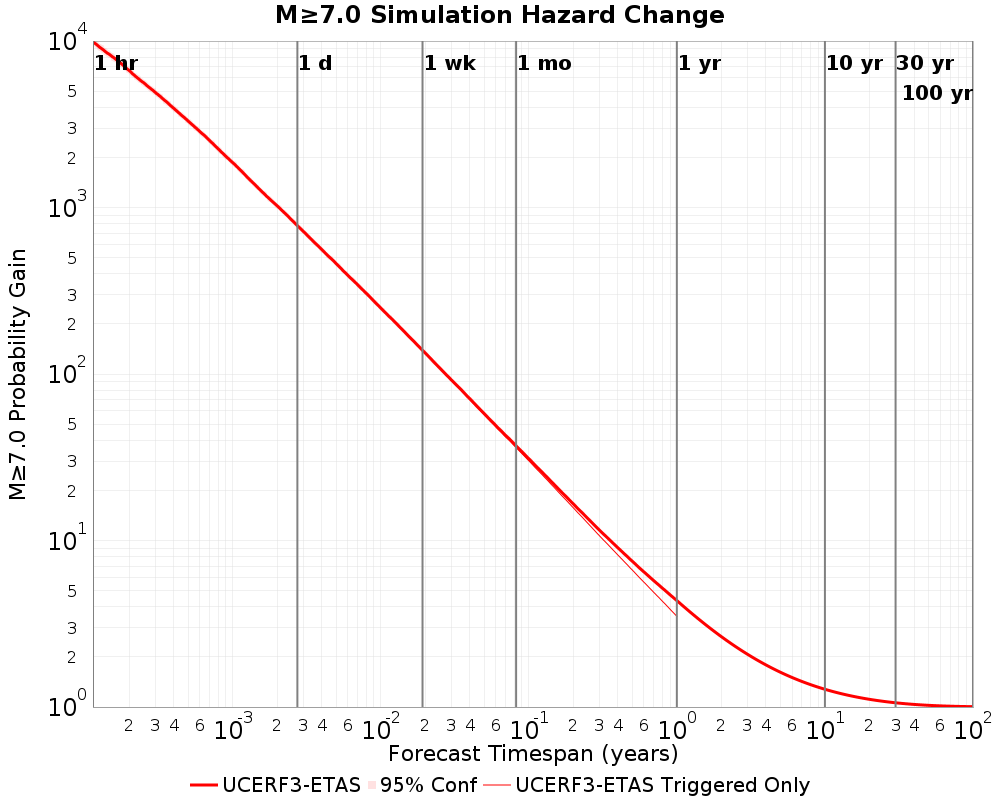

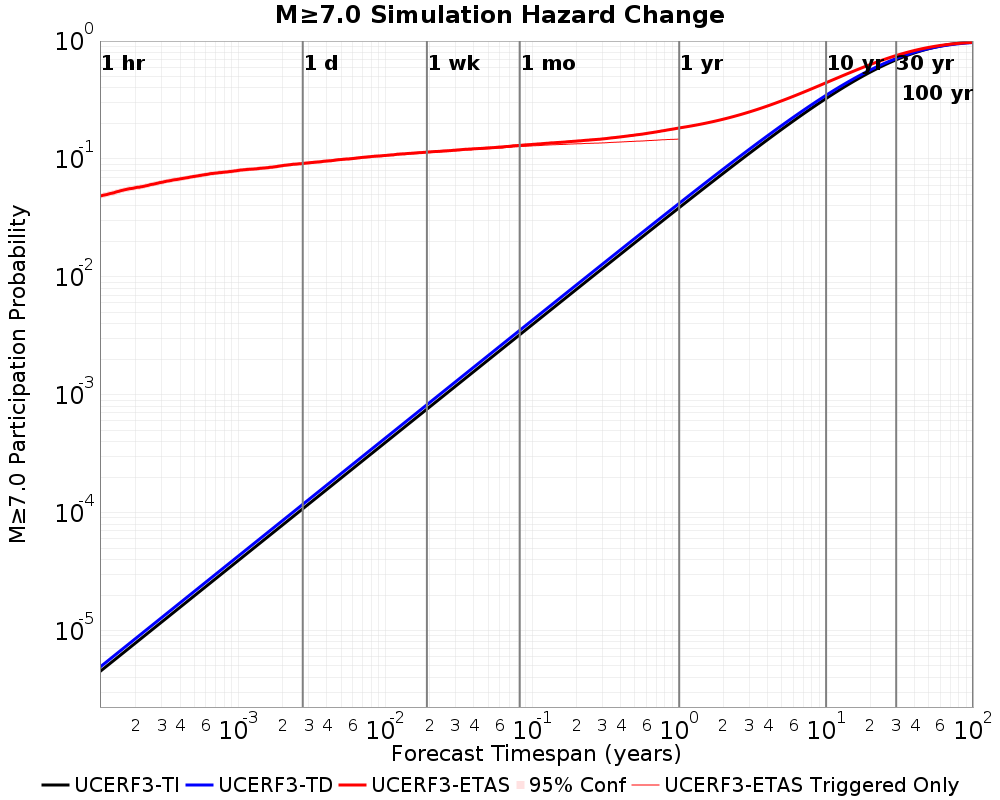

M≥7.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 1 year are included

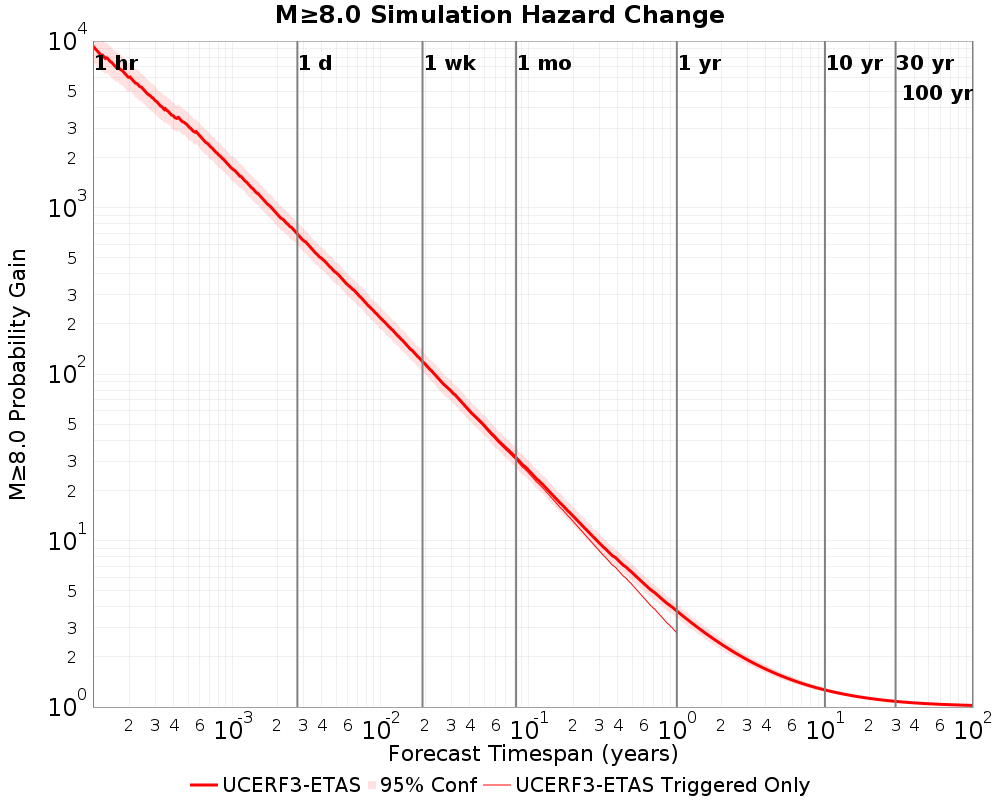

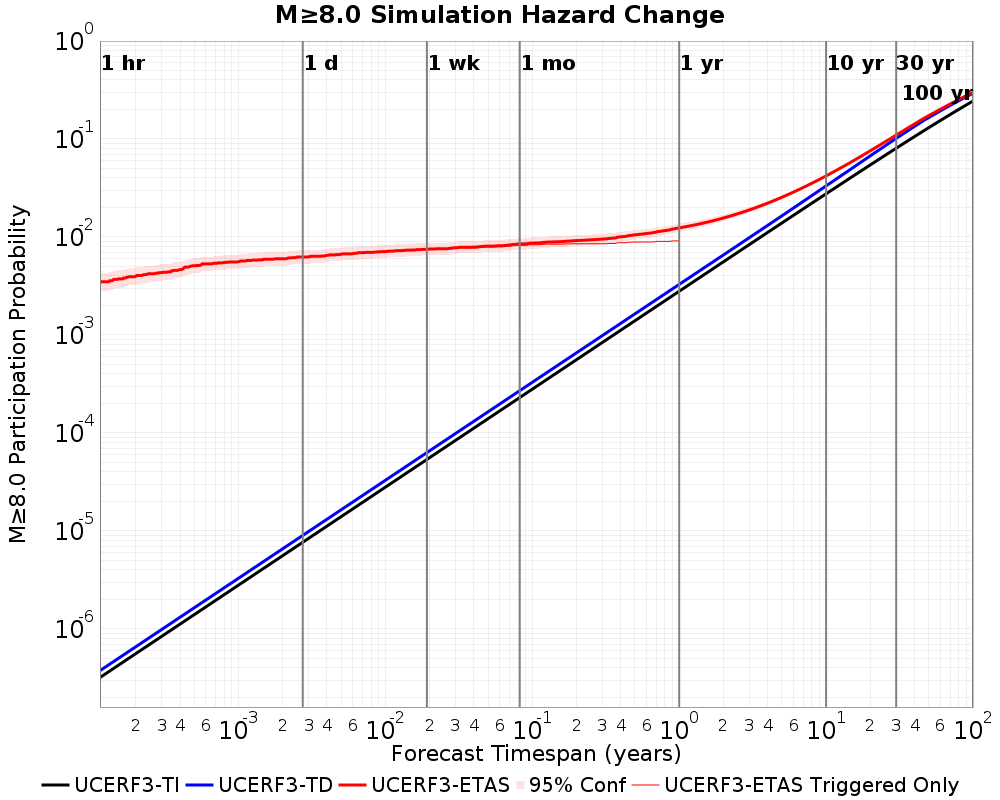

M≥8.0 Hazard Change Over Time

(top)

* forecast duration is longer than simulation length, only ETAS ruptures from the first 1 year are included

Trigger Rupture Fault Map

(top)

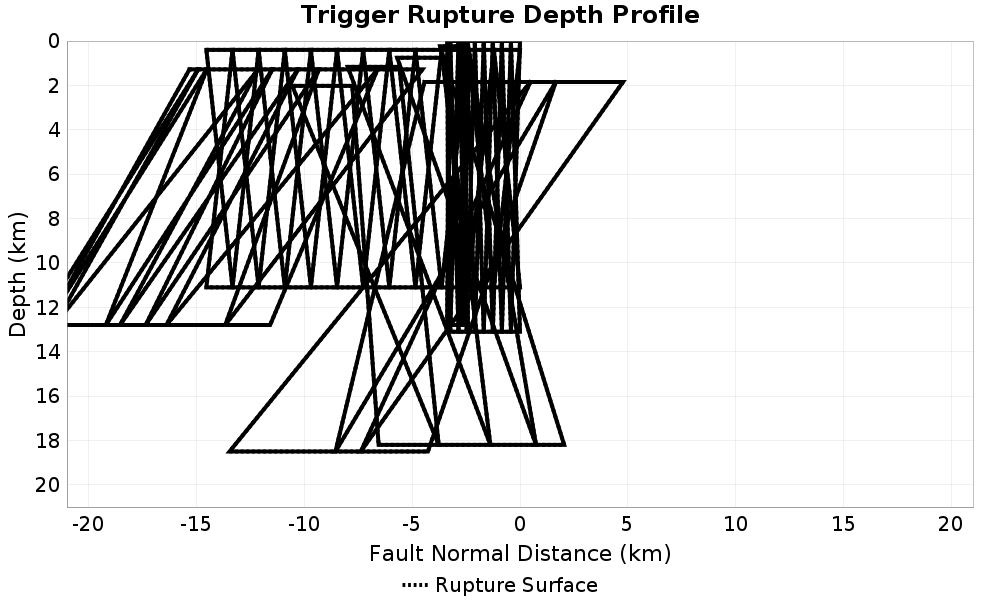

Trigger Rupture Depth Map

(top)

Fault Distances To Triggers

(top)

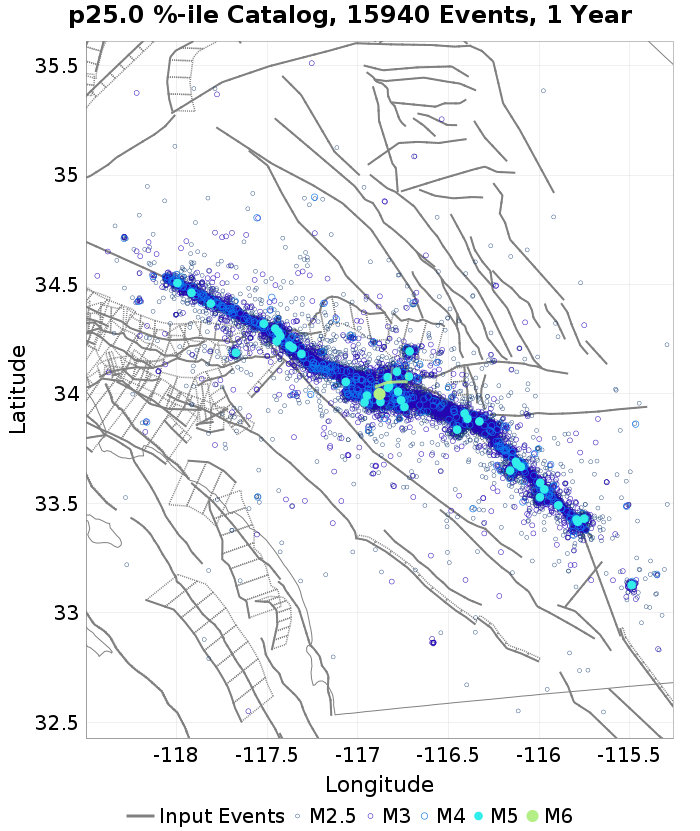

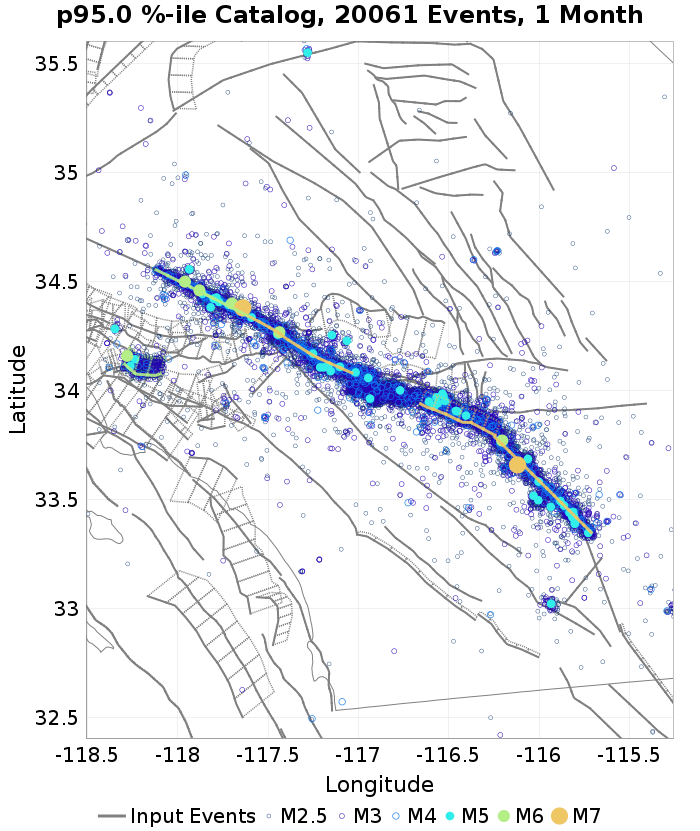

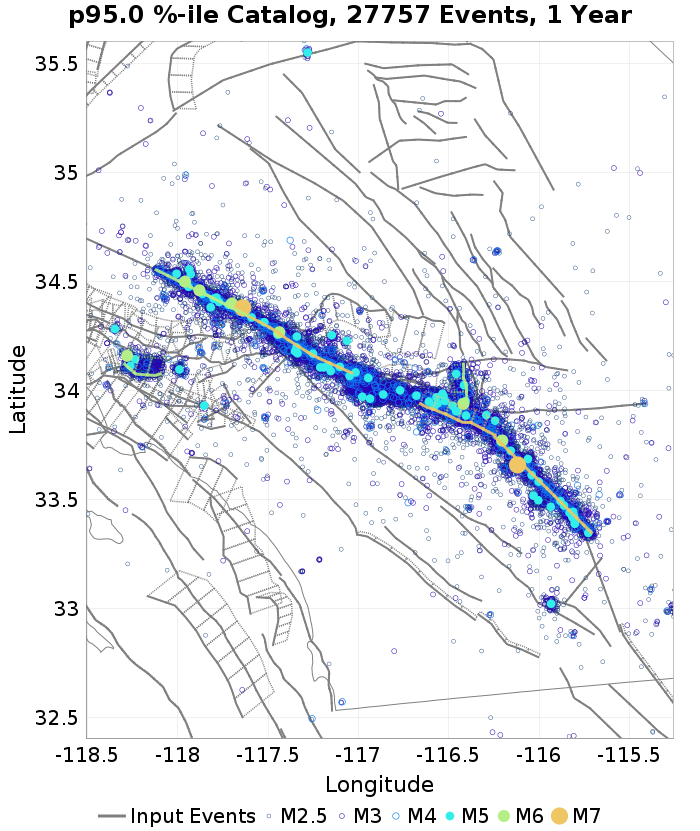

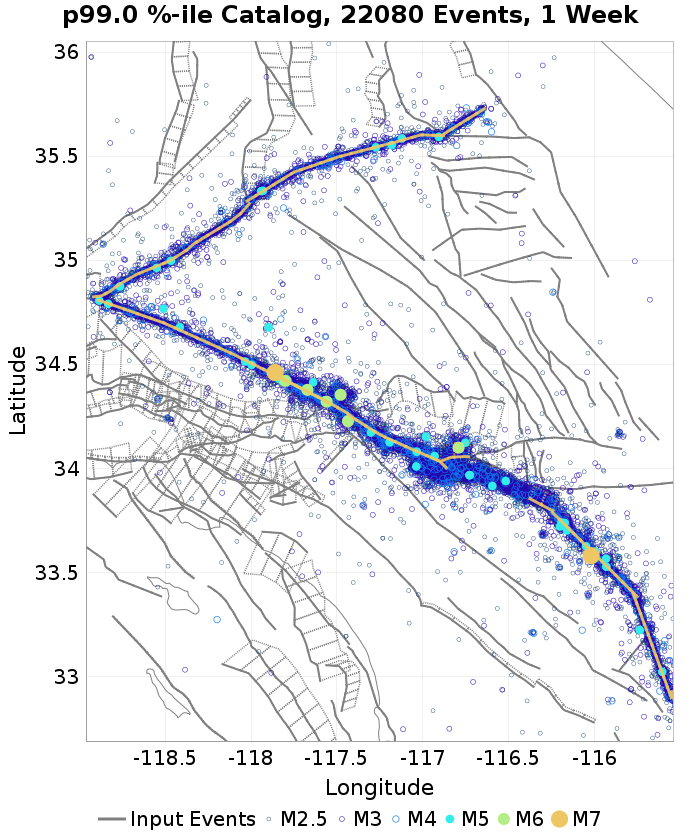

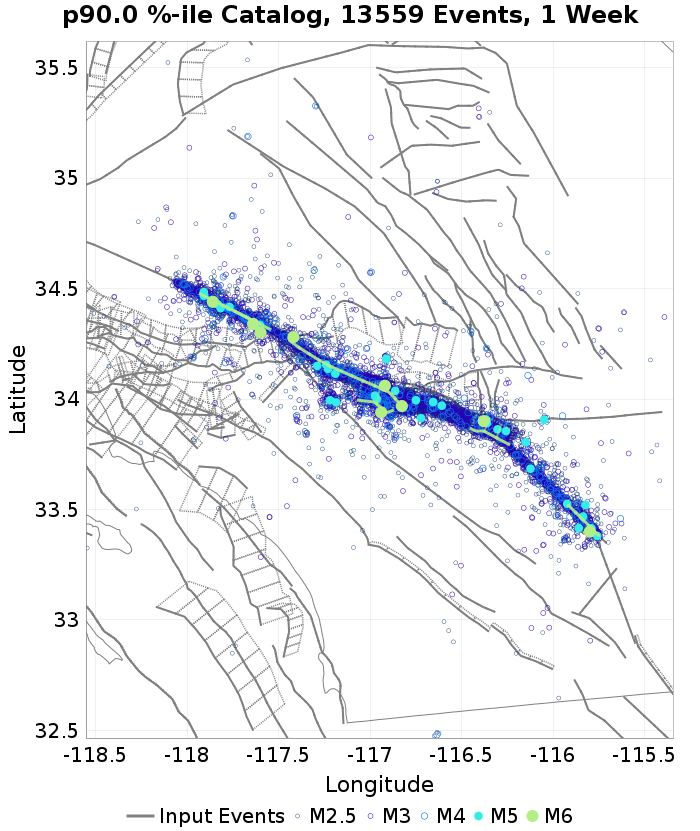

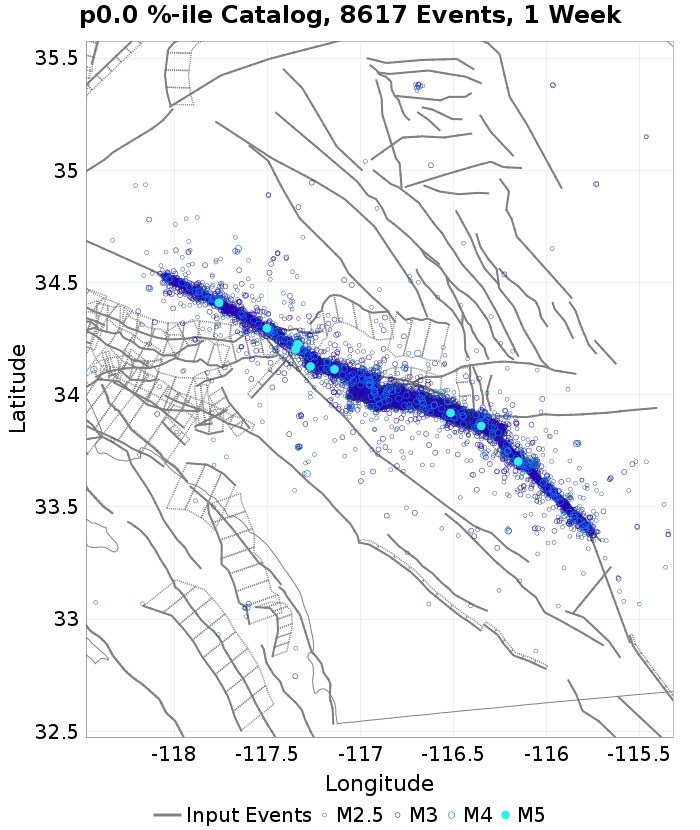

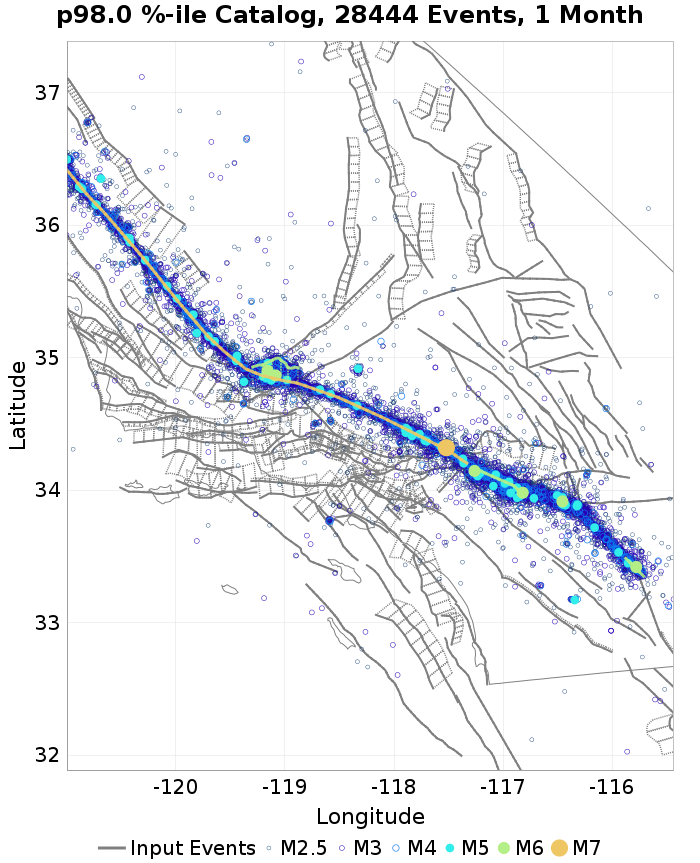

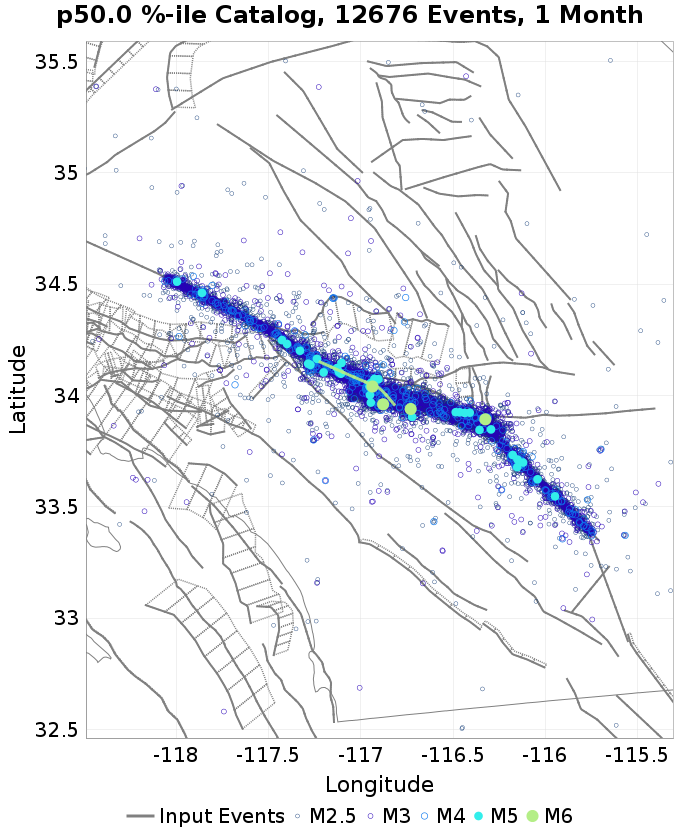

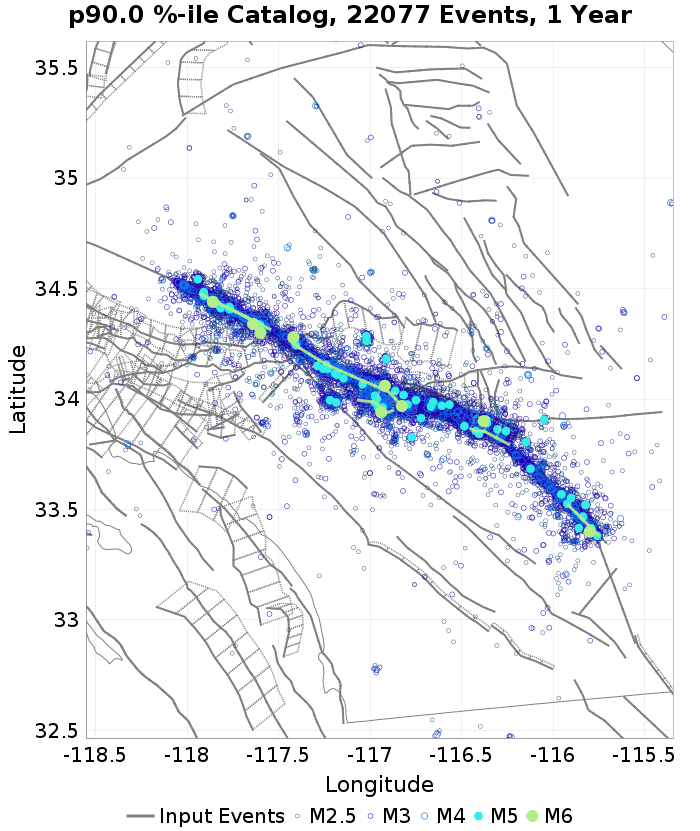

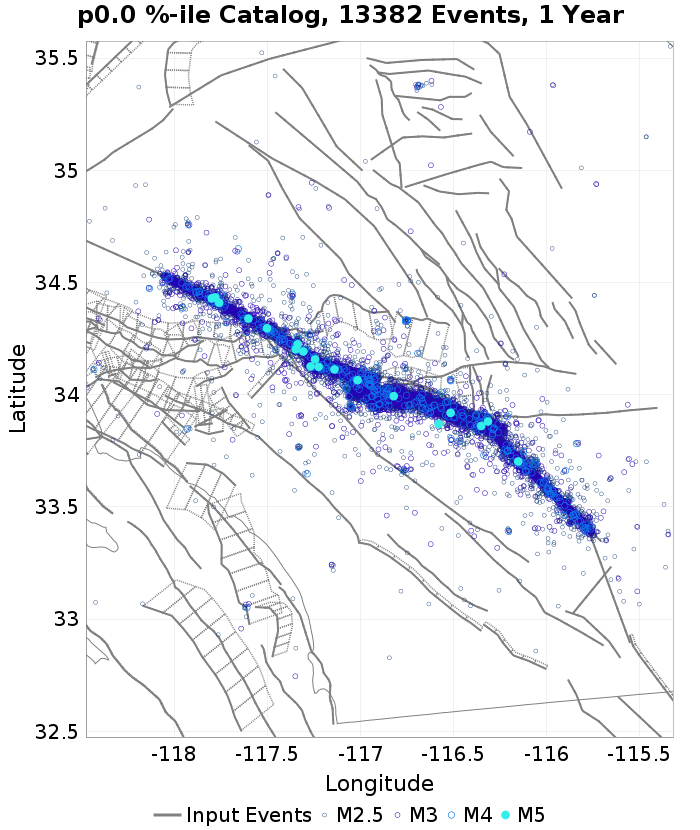

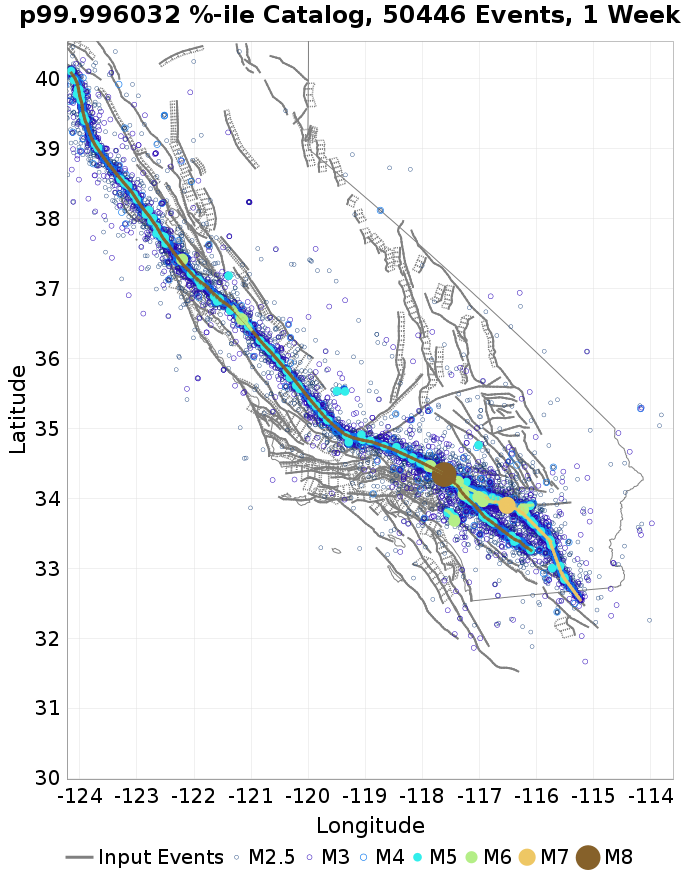

Individual Simulated Catalog Maps

(top)

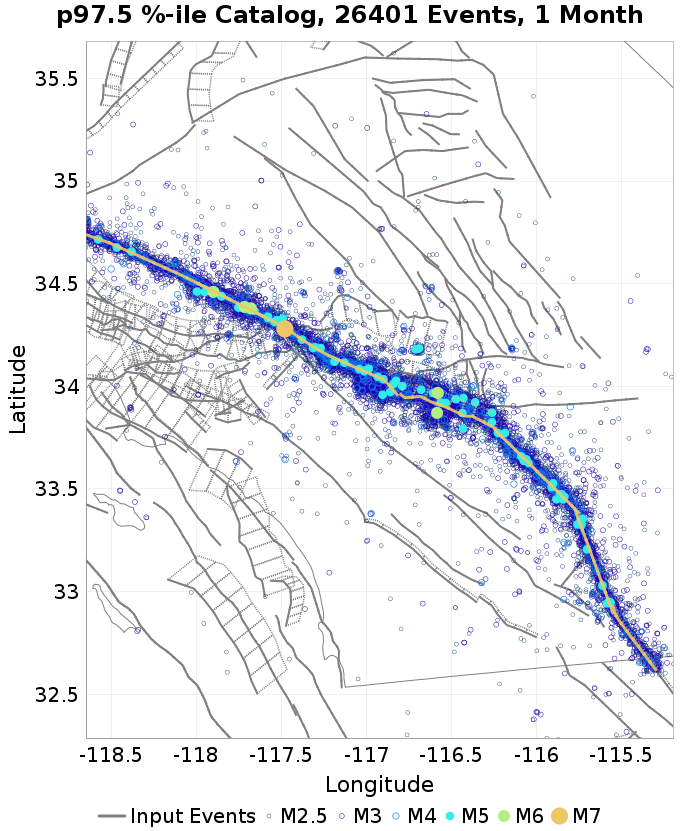

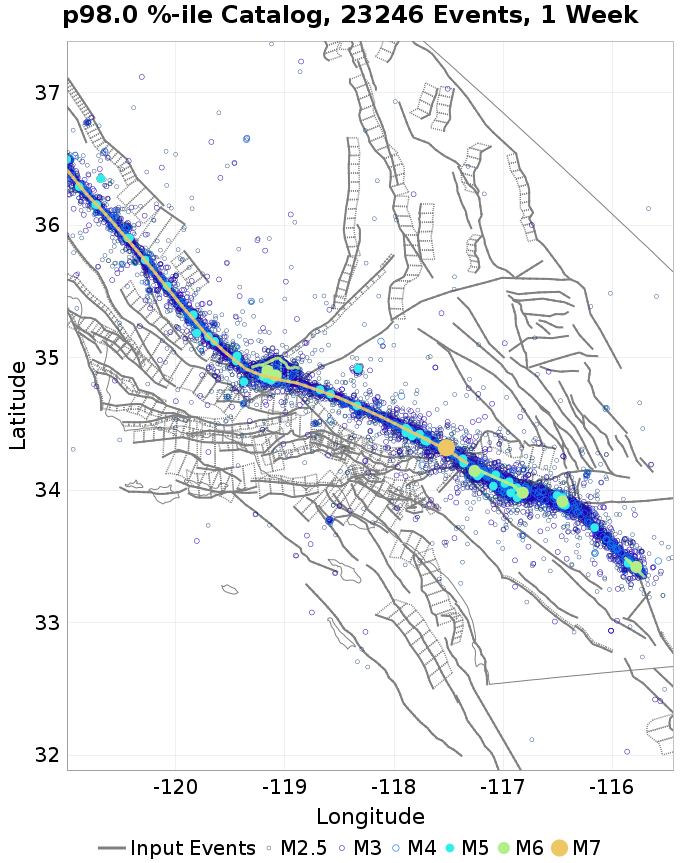

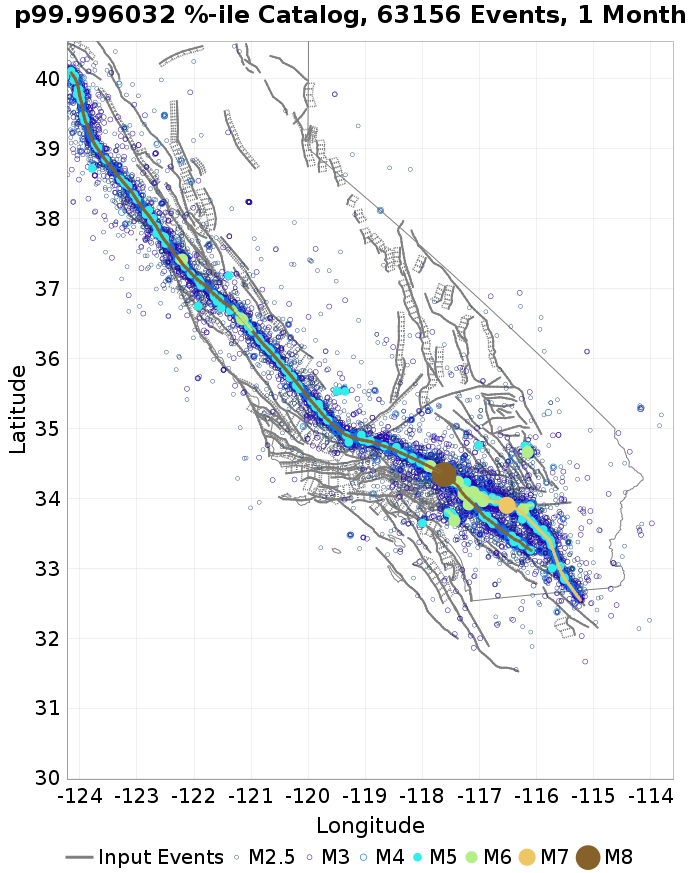

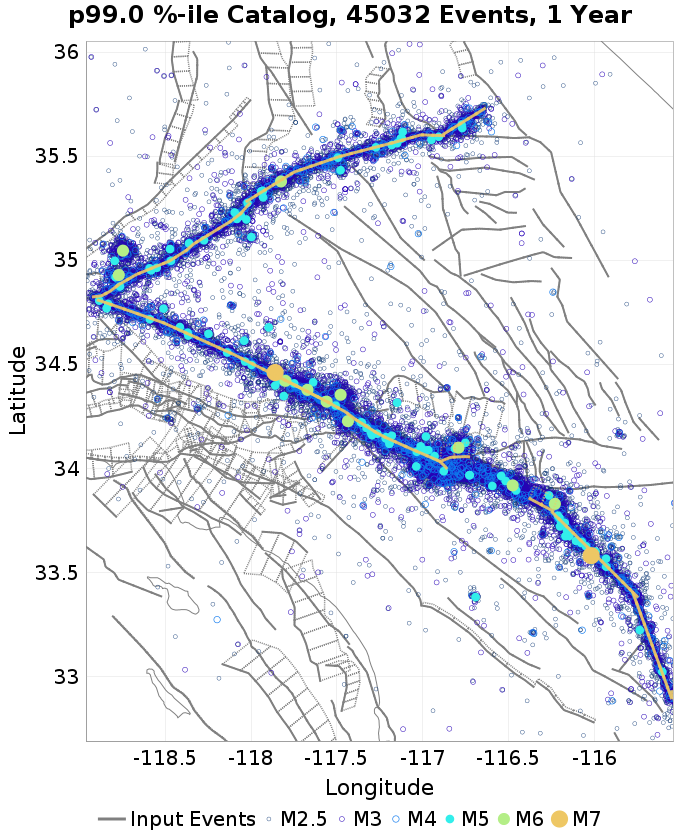

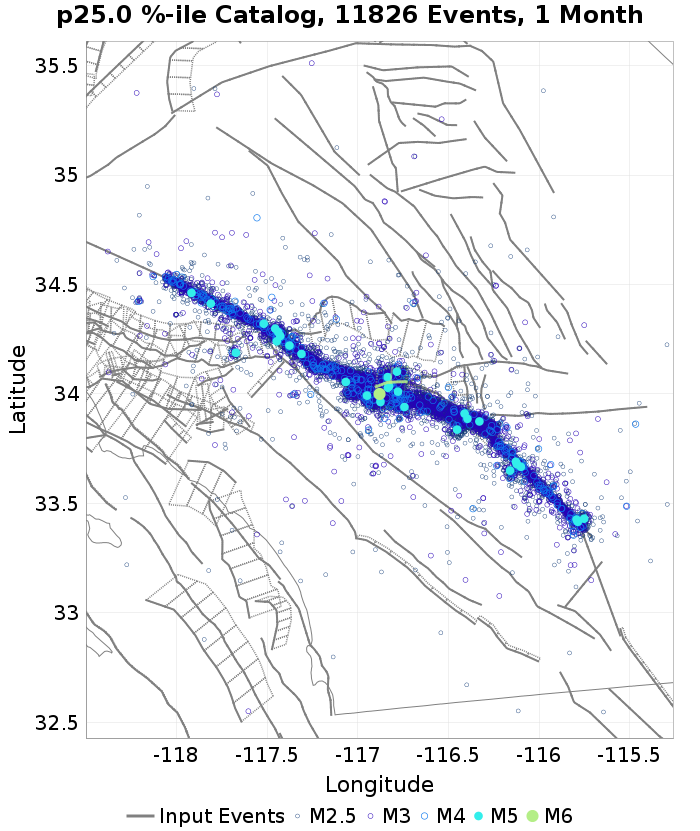

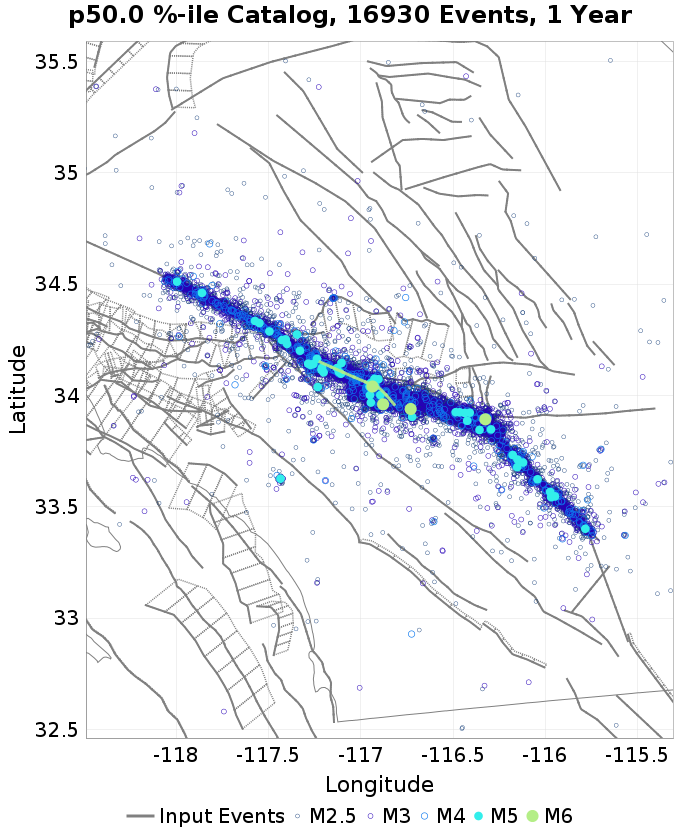

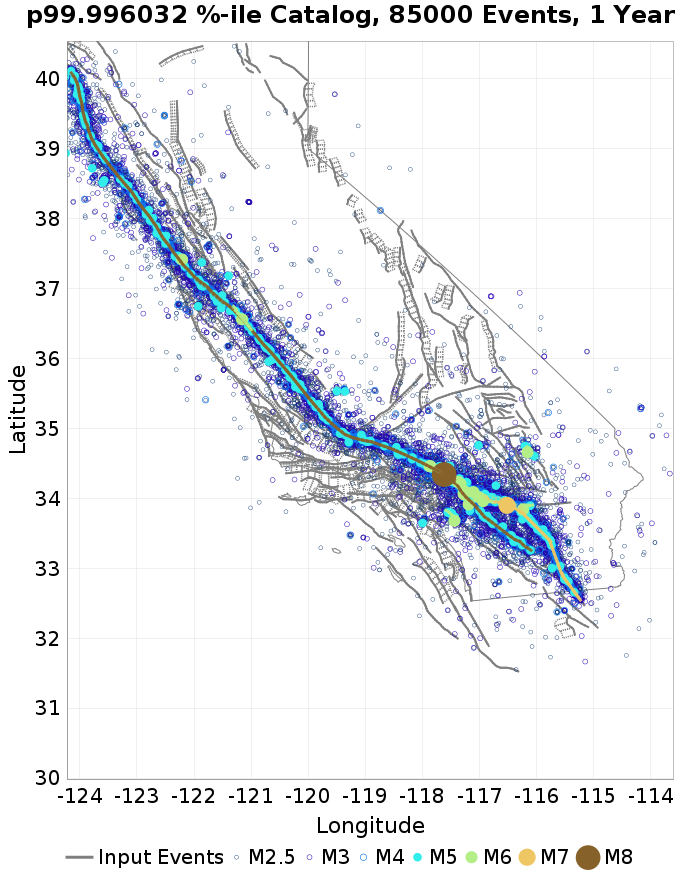

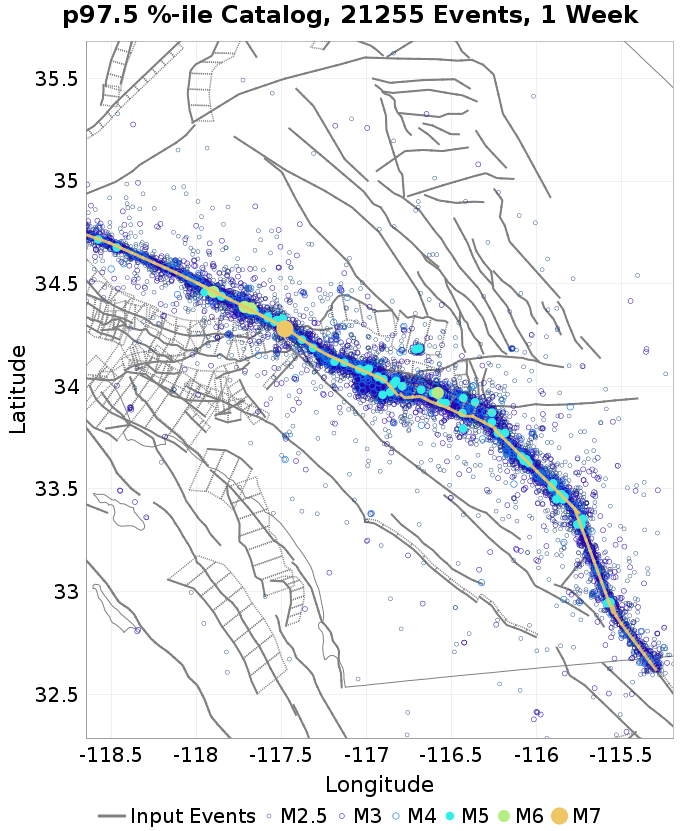

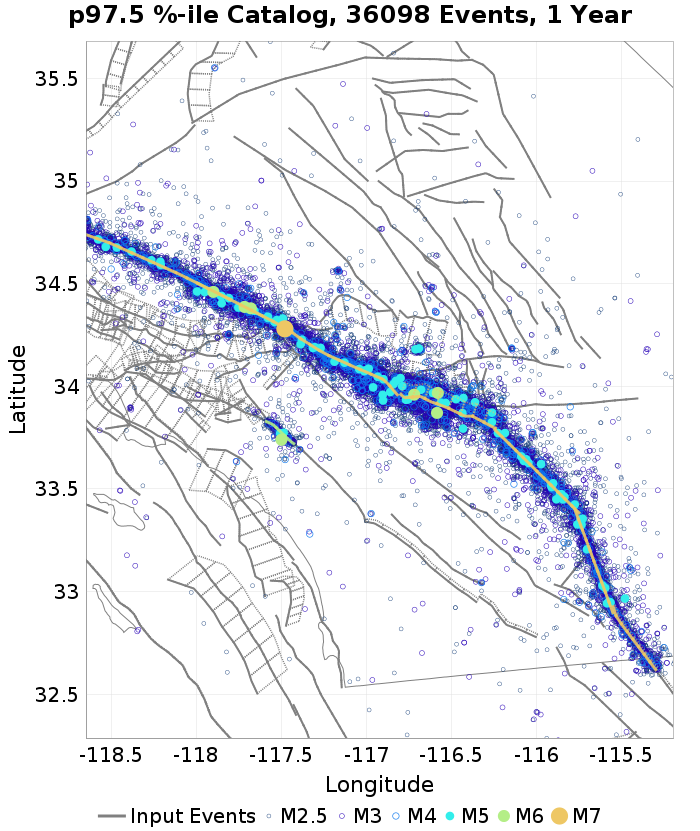

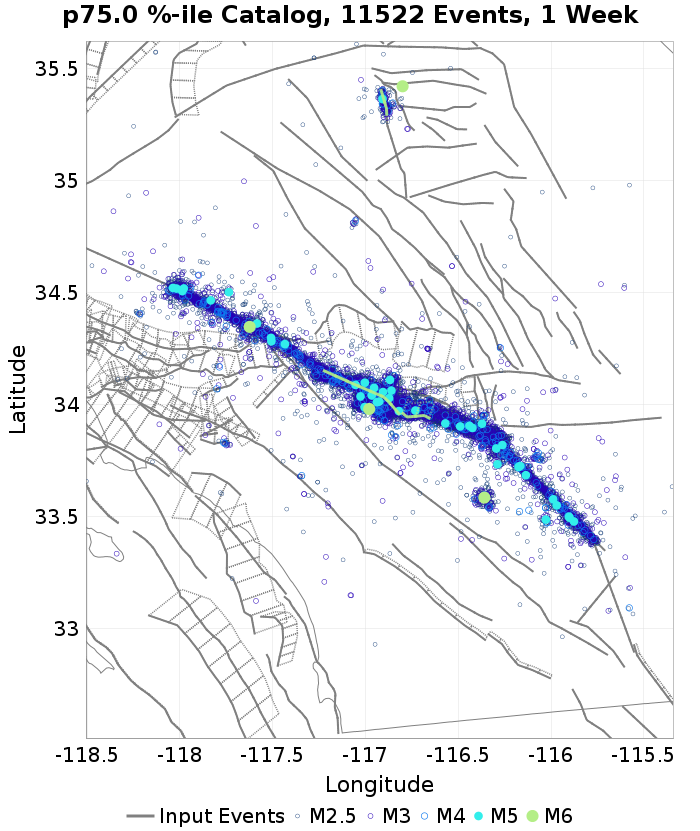

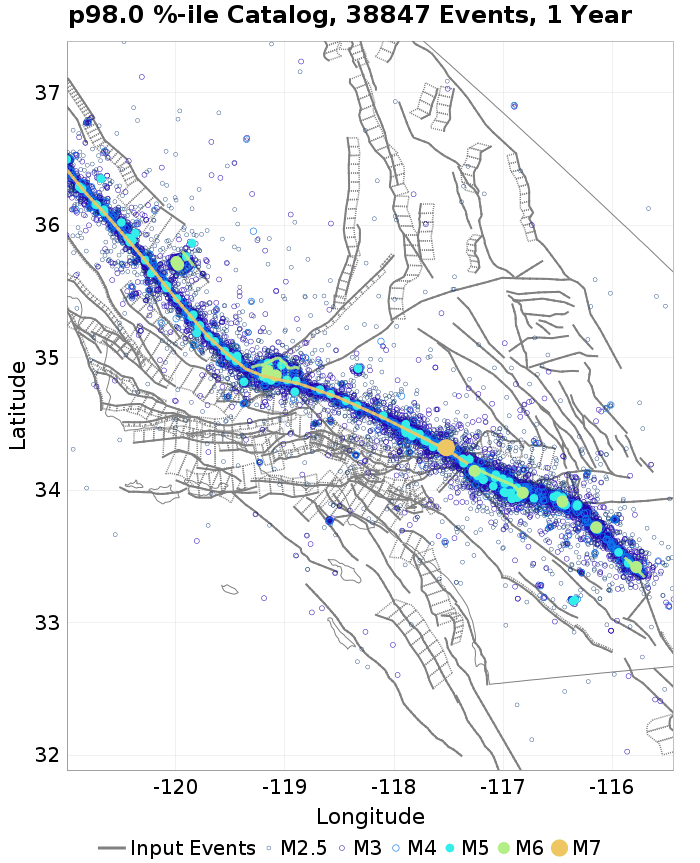

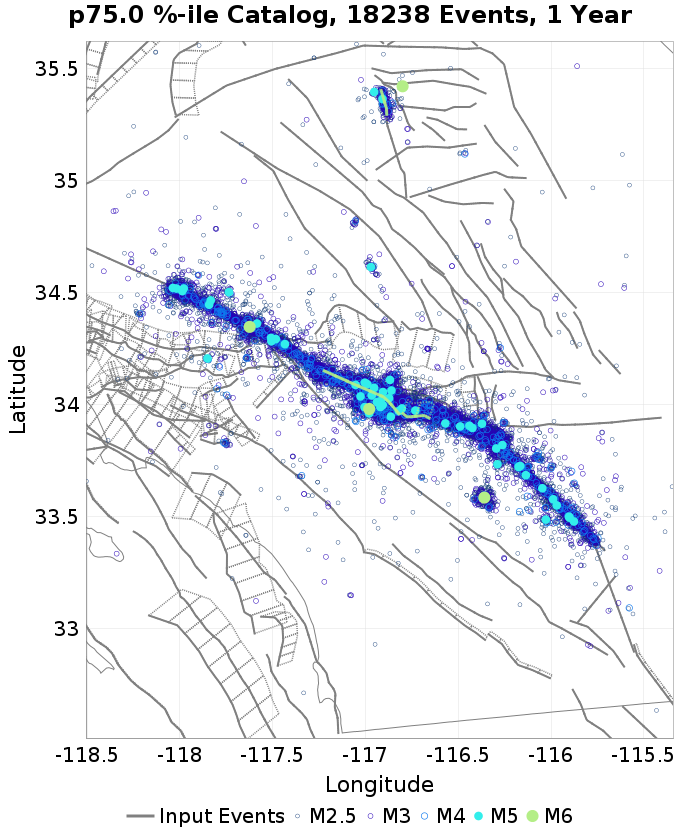

These are map plots of individual catalogs from the simulations, selected as the closest catalog to each of the given percentiles in terms of total number of events.

Duration	p0.0 %-ile	p25.0 %-ile	p50.0 %-ile	p75.0 %-ile	p90.0 %-ile	p95.0 %-ile	p97.5 %-ile	p98.0 %-ile	p99.0 %-ile	p99.996032 %-ile
1 Week
1 Month
1 Year

Section Participation

(top)

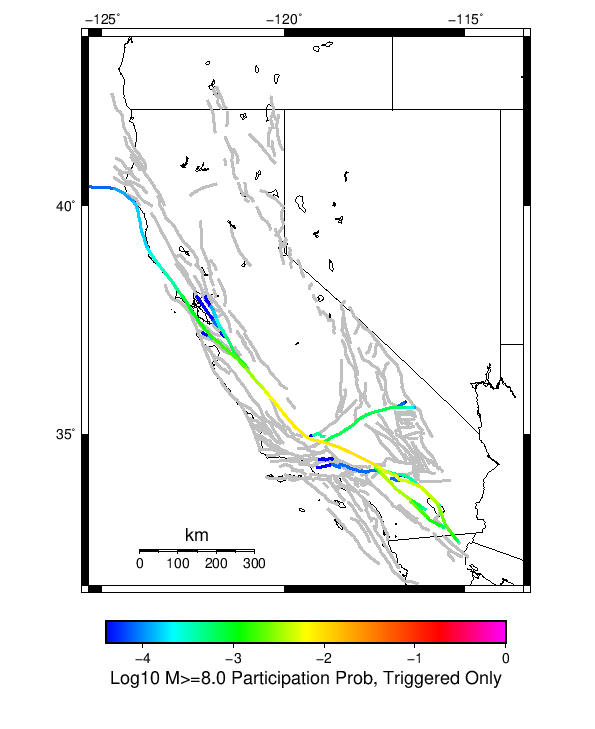

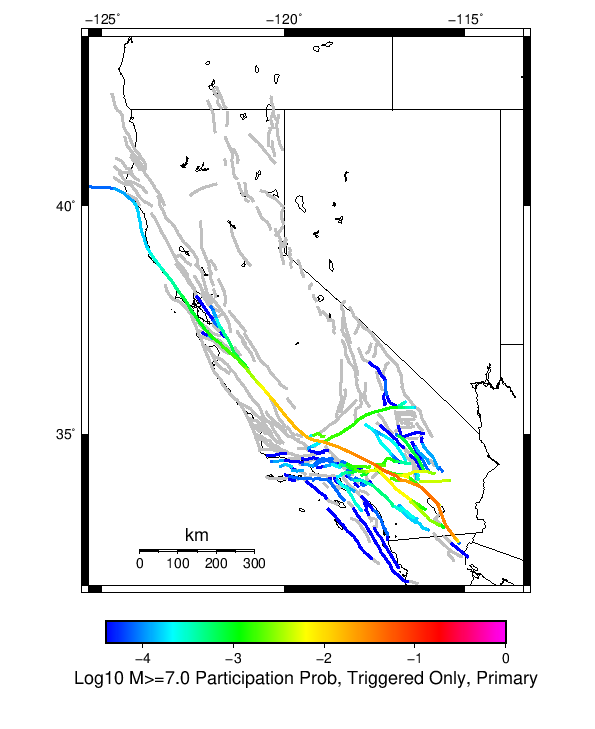

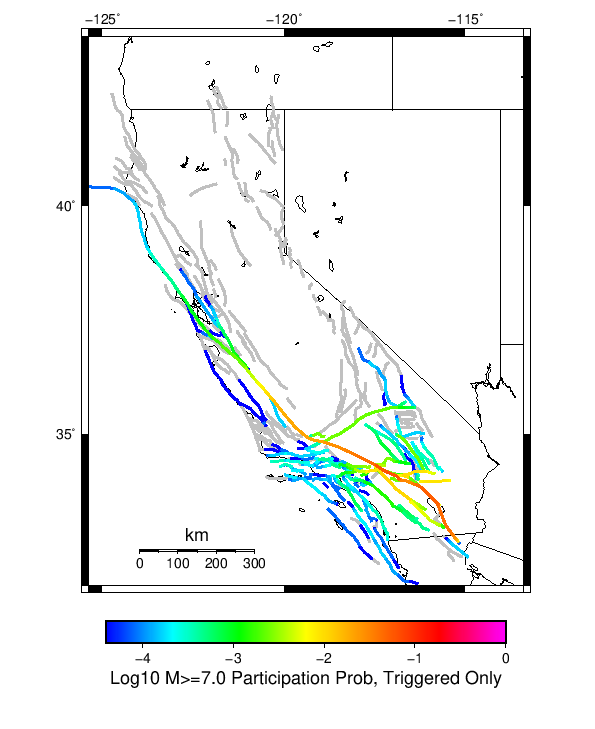

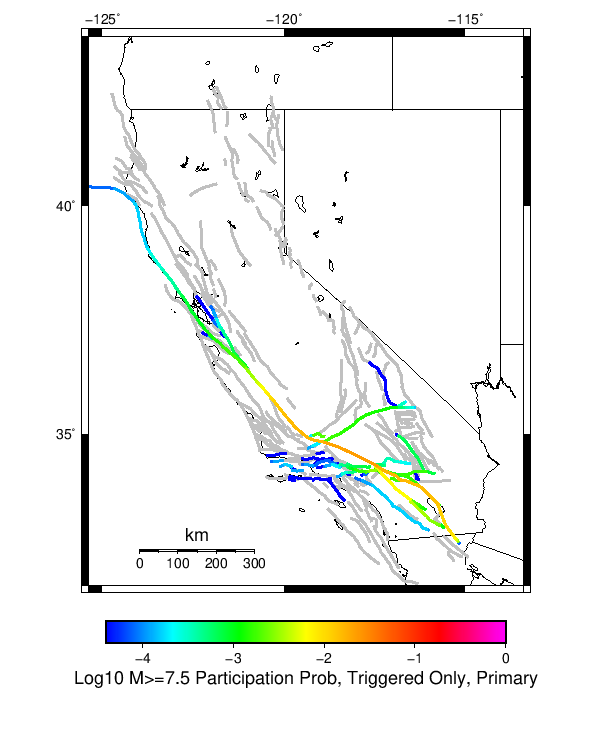

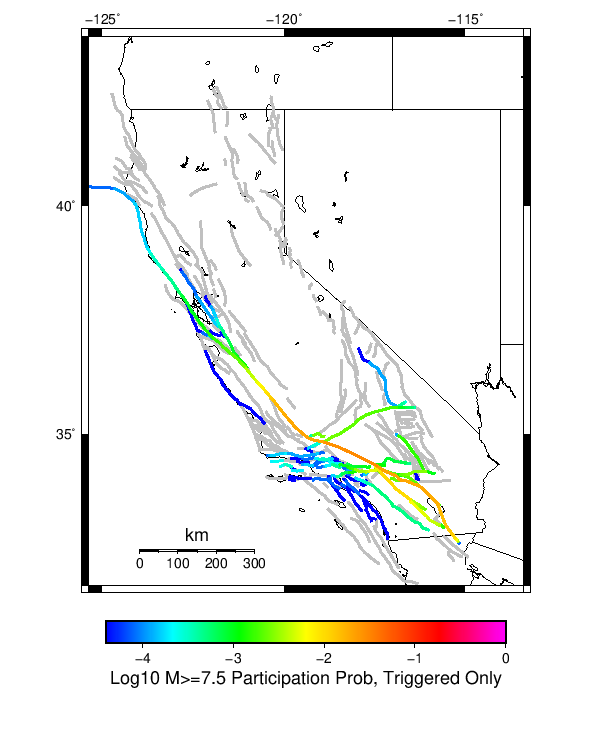

Section Participation Plots

(top)

Min Mag	1 yr Triggered Ruptures (no spontaneous)	1 yr Triggered Ruptures (primary aftershocks only)
All Supra. Seis.
M≥6.5
M≥7
M≥7.5
M≥8

Supra-Seismogenic Parent Sections Table

(top)

First 25 of 218 with matching ruptures shown

M≥6.5 Parent Sections Table

(top)

First 25 of 199 with matching ruptures shown

M≥7 Parent Sections Table

(top)

First 25 of 158 with matching ruptures shown

M≥7.5 Parent Sections Table

(top)

First 25 of 115 with matching ruptures shown

M≥8 Parent Sections Table

(top)

First 25 of 53 with matching ruptures shown

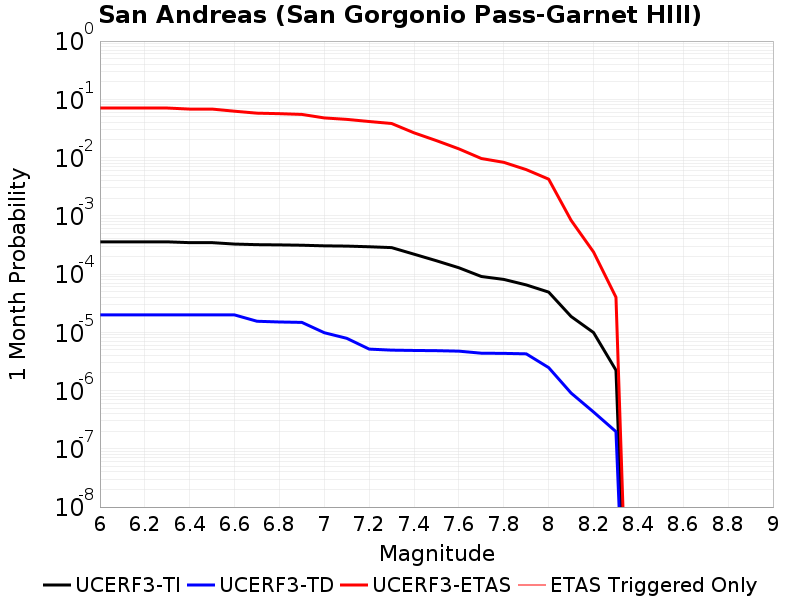

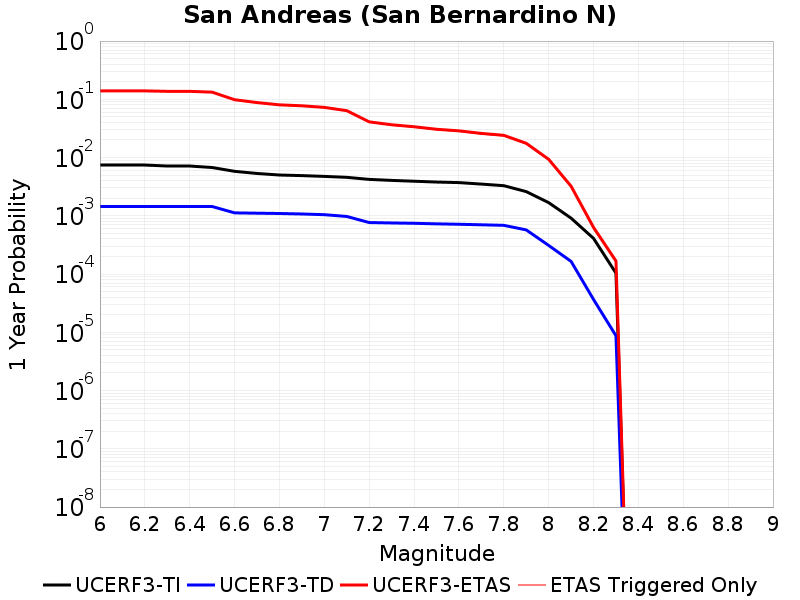

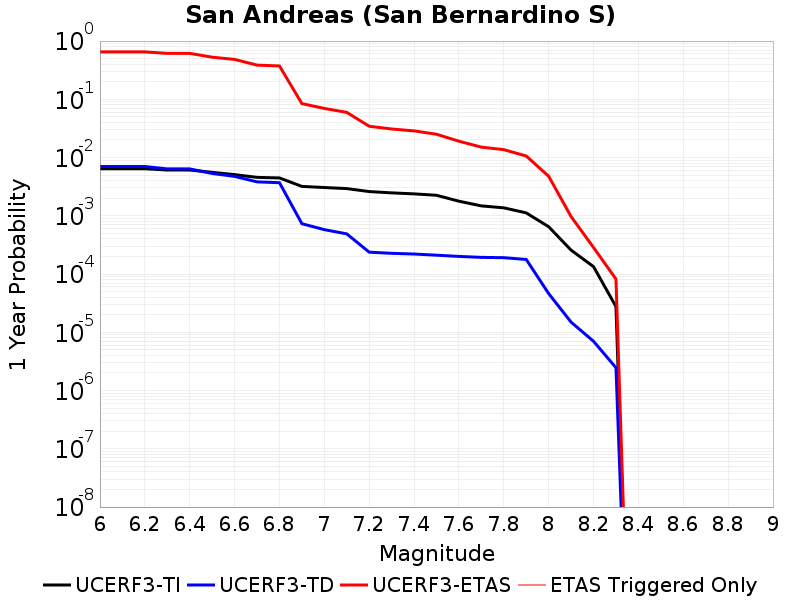

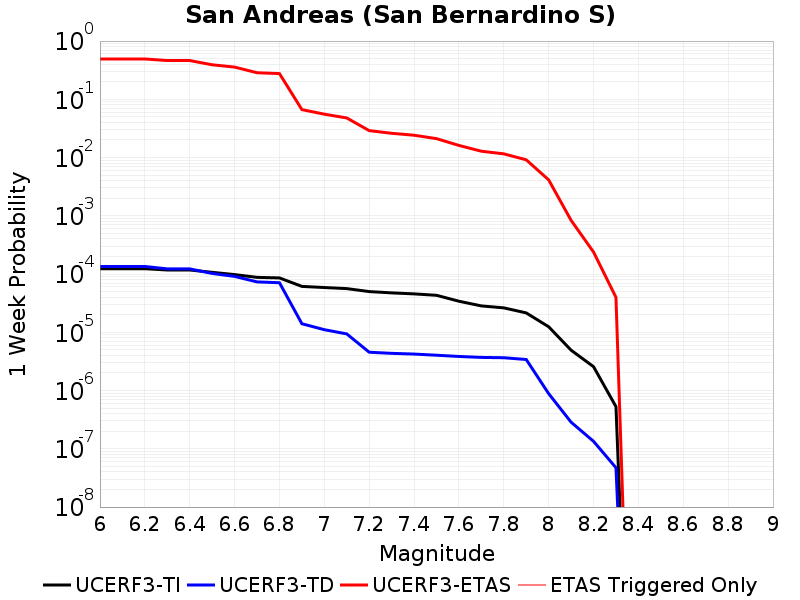

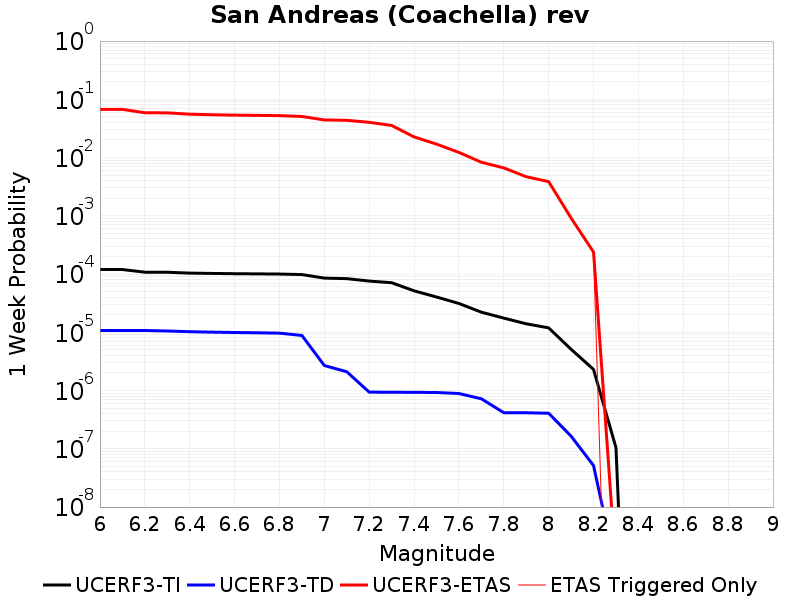

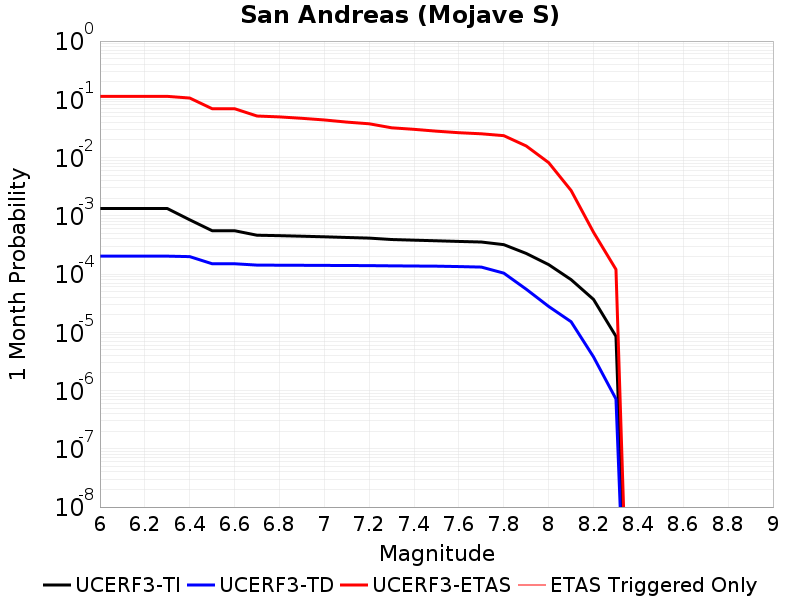

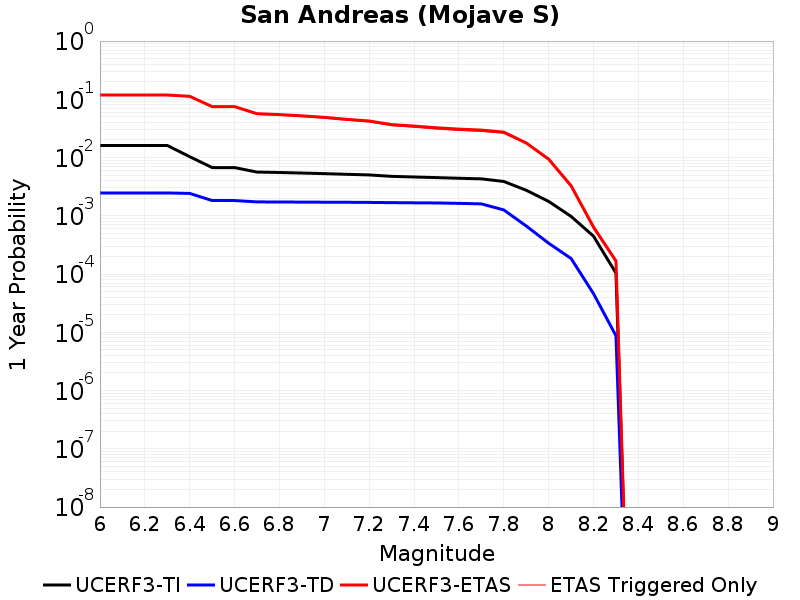

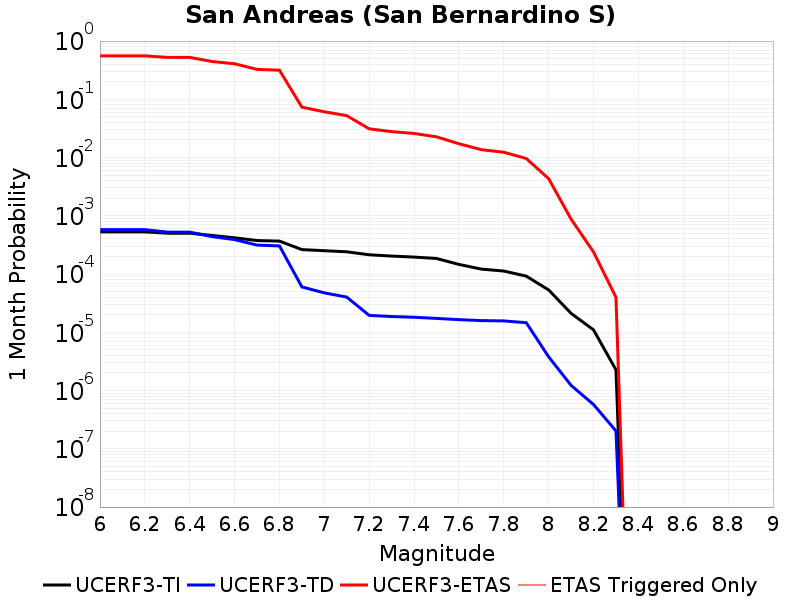

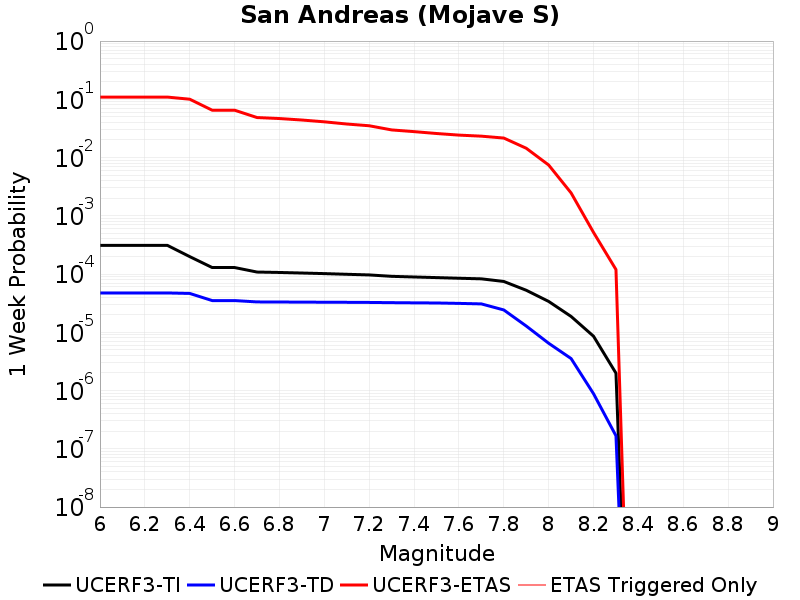

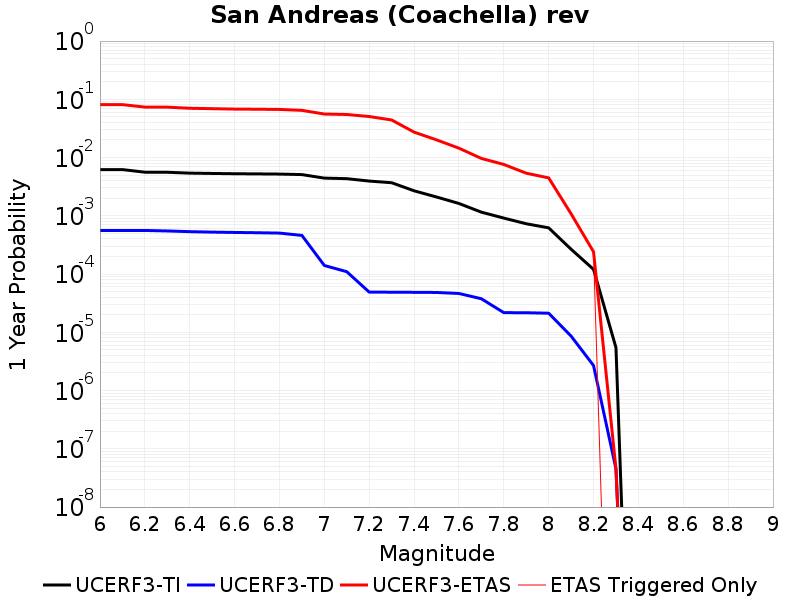

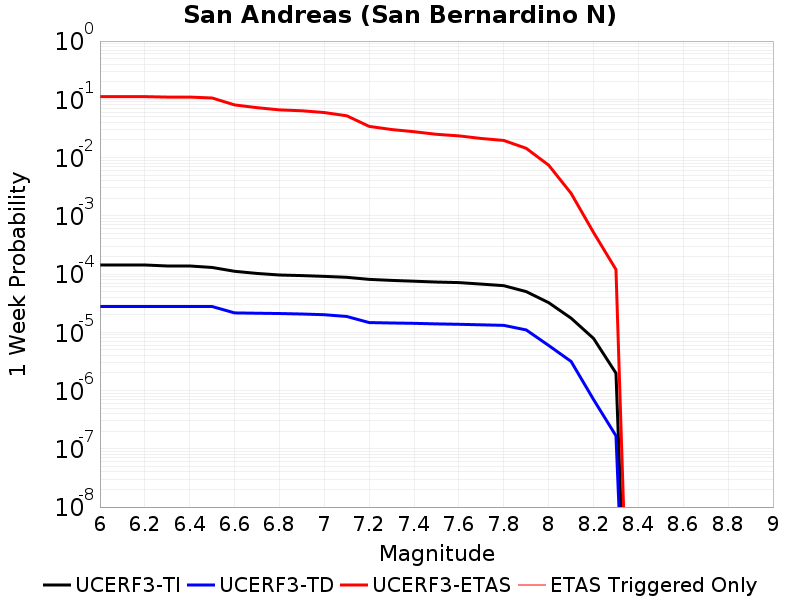

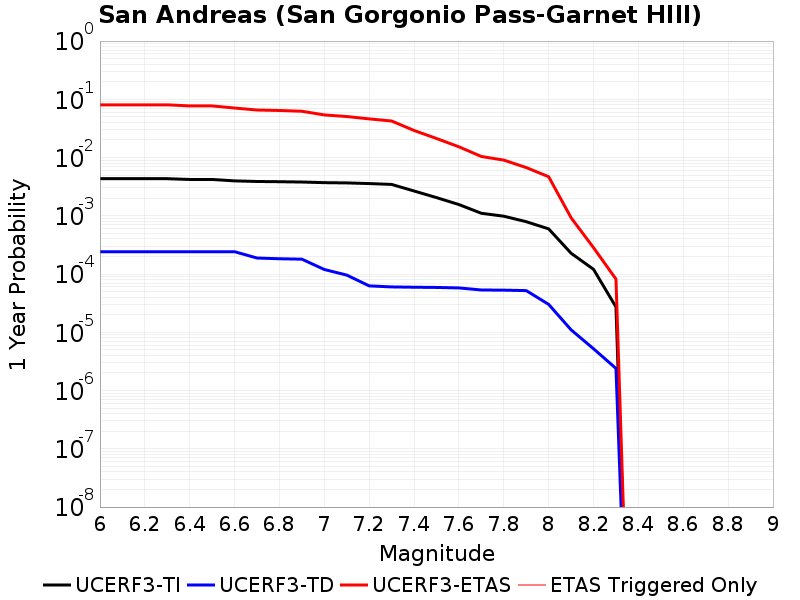

Fault Magnitude-Probability Distributions

(top)

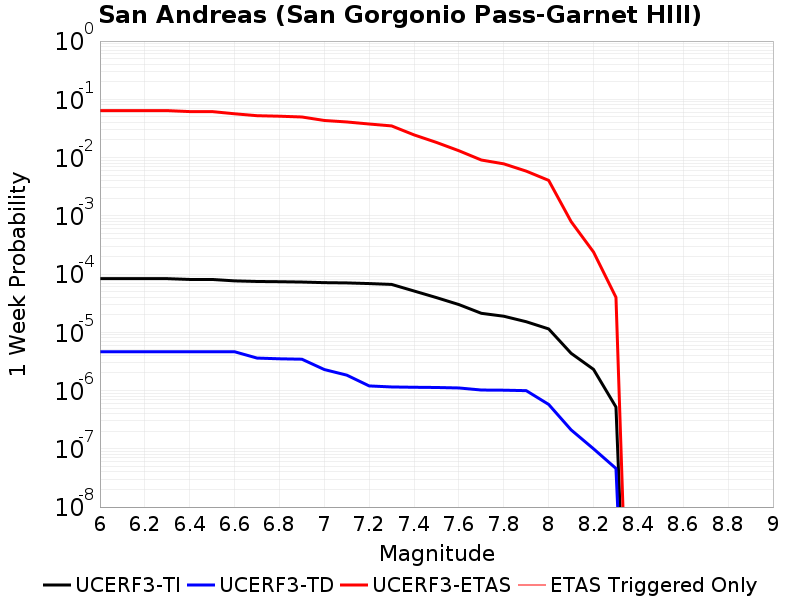

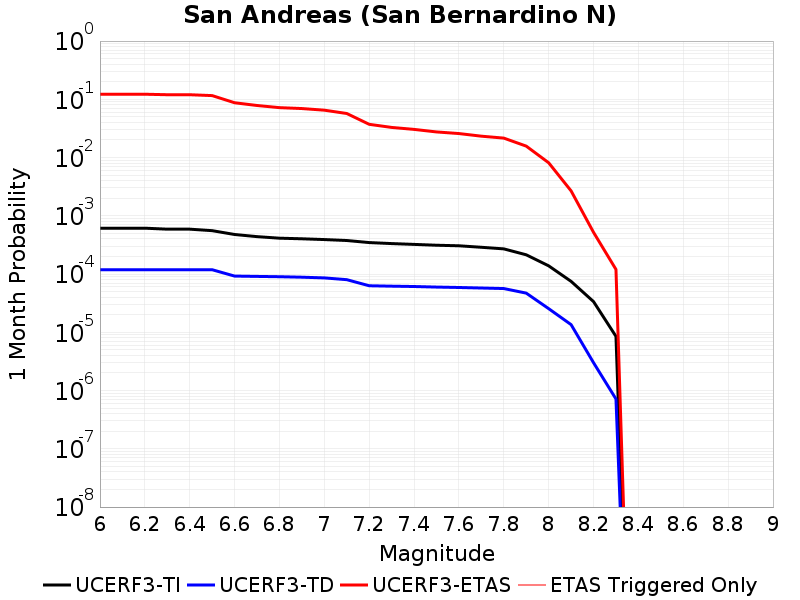

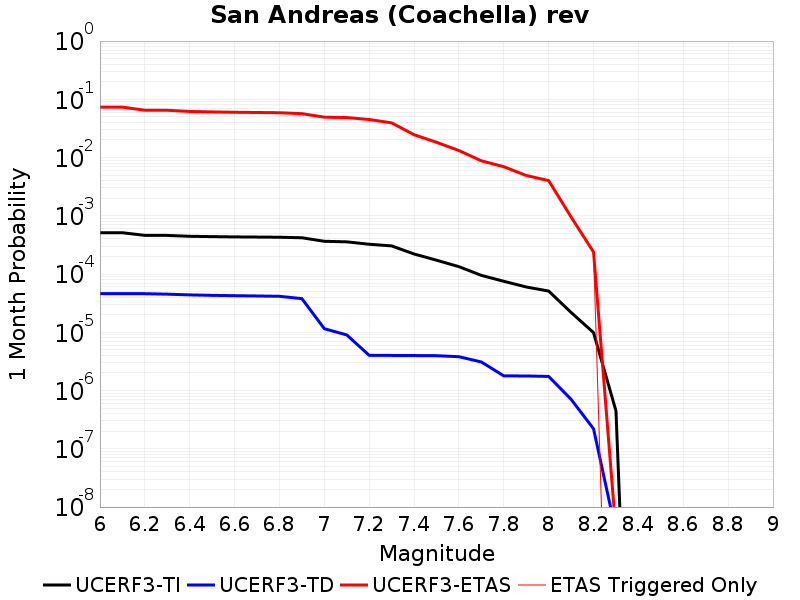

The first 5 sections (sorted by trigger rate) are plotted below. All fault MPDs are available here

1 Week	1 Month	1 Year

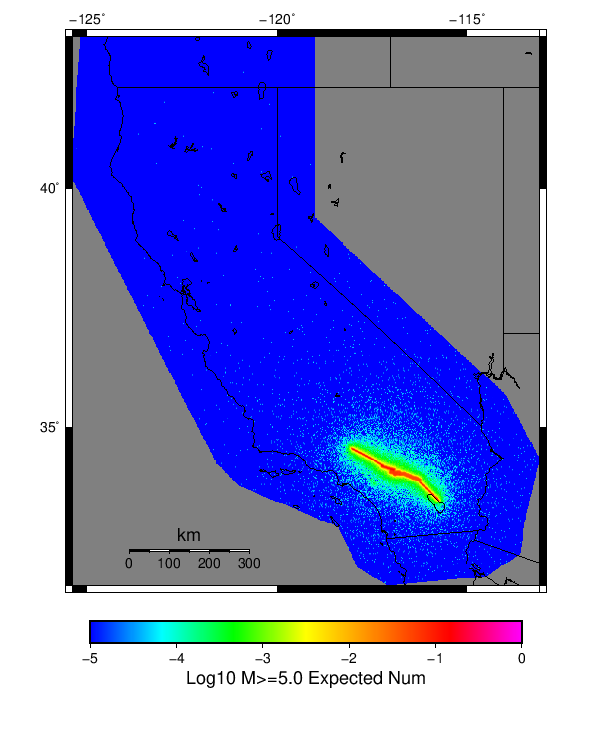

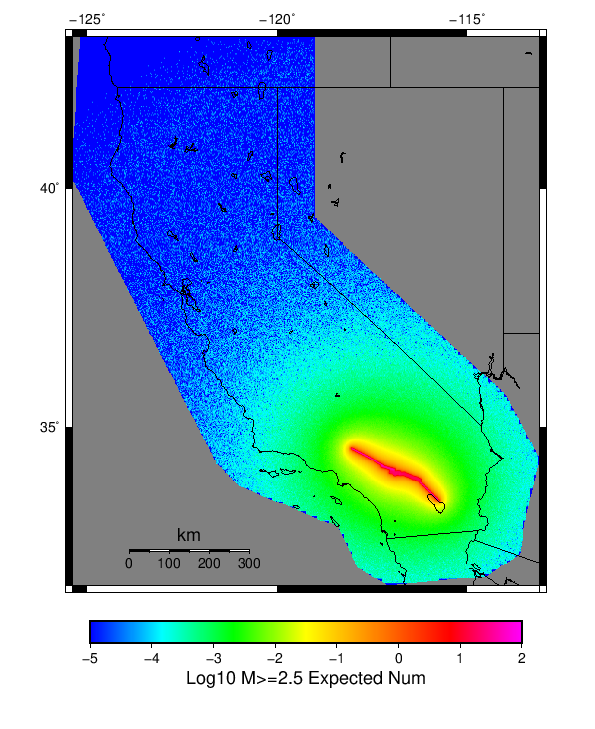

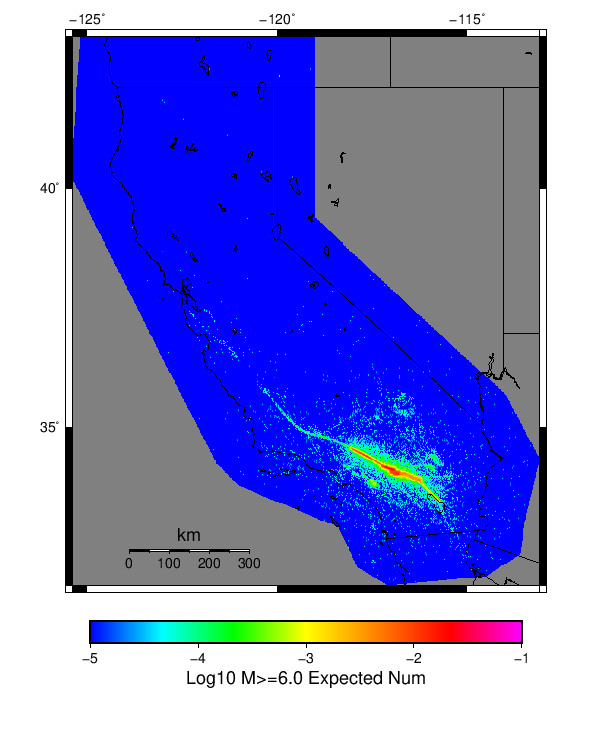

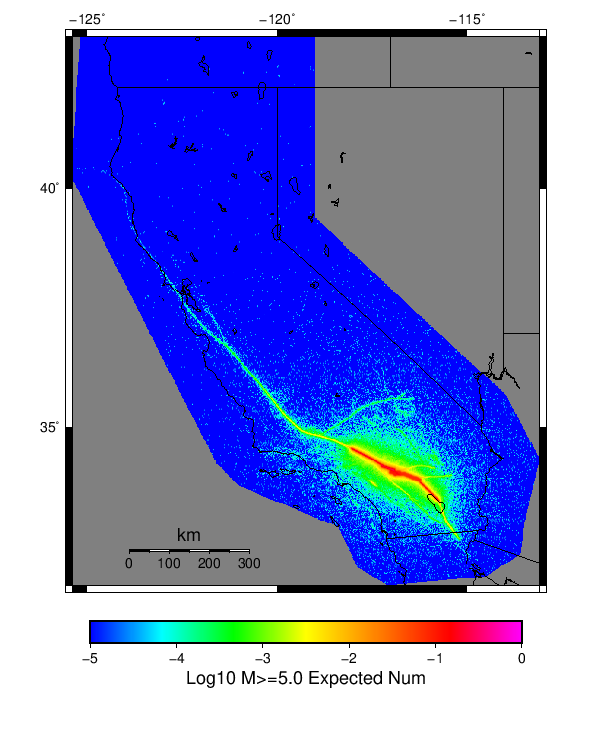

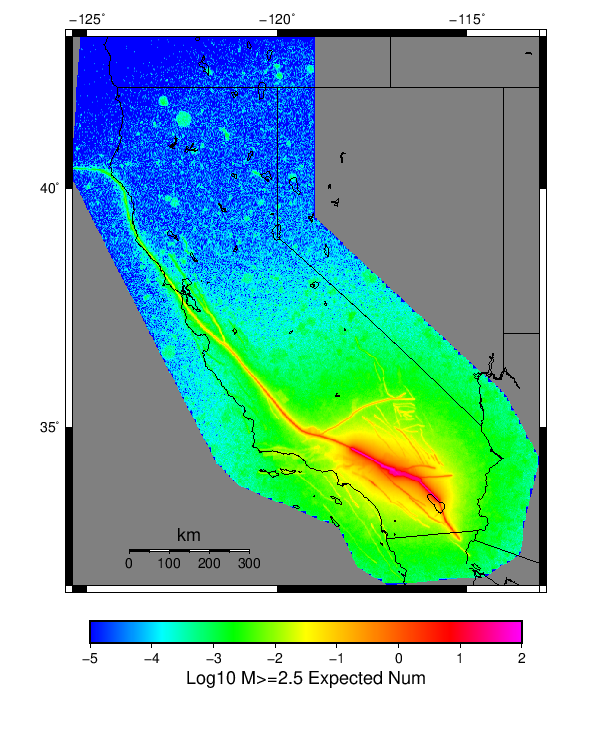

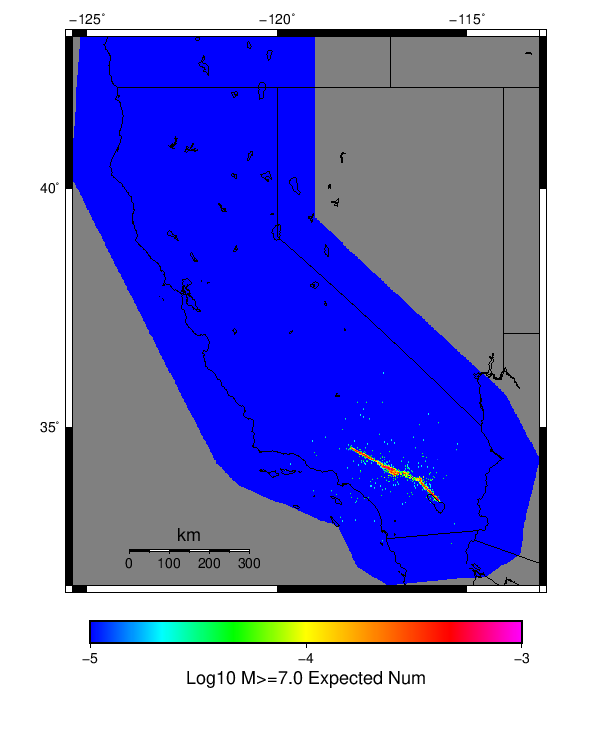

Gridded Nucleation

(top)

Min Mag	Triggered Ruptures (no spontaneous)	Triggered Ruptures (primary aftershocks only)
M≥2.5
M≥5
M≥6
M≥7

JSON Input File

(top)

{
  "numSimulations": 50000,
  "duration": 1.0,
  "startTimeMillis": 1778624347993,
  "includeSpontaneous": false,
  "randomSeed": 1778925016262,
  "binaryOutput": true,
  "binaryOutputFilters": [
    {
      "prefix": "results_complete",
      "descendantsOnly": false
    },
    {
      "prefix": "results_m5_preserve_chain",
      "minMag": 5.0,
      "preserveChainBelowMag": true,
      "descendantsOnly": false
    }
  ],
  "forceRecalc": false,
  "simulationName": "FSS Rupture 198678, M7.8047805, Start 2026/05/12, 1 yr",
  "numRetries": 3,
  "outputDir": "/work2/10177/bhatthal/frontera/ucerf3/u3etas_sim/scenarios/frontera-scenario-fss198678-n100-s50000-t1778624347993",
  "treatTriggerCatalogAsSpontaneous": false,
  "triggerRuptures": [
    {
      "fssIndex": 198678
    }
  ],
  "cacheDir": "${ETAS_LAUNCHER}/inputs/cache_fm3p1_ba",
  "fssFile": "${ETAS_LAUNCHER}/inputs/2013_05_10-ucerf3p3-production-10runs_COMPOUND_SOL_FM3_1_SpatSeisU3_MEAN_BRANCH_AVG_SOL.zip",
  "probModel": "FULL_TD",
  "applySubSeisForSupraNucl": true,
  "totRateScaleFactor": 1.29,
  "gridSeisCorr": true,
  "timeIndependentERF": false,
  "griddedOnly": false,
  "imposeGR": false,
  "includeIndirectTriggering": true,
  "gridSeisDiscr": 0.1,
  "catalogCompletenessModel": "RELAXED",
  "maxPointSourceMag": 10.0,
  "configCommand": "u3etas_config_builder.sh --start-time 1778624347993 --fss-index 198678 --nodes 100 --num-simulations 50000 --hpc-site TACC_FRONTERA --duration-years 1 --output-dir /work2/10177/bhatthal/frontera/ucerf3/u3etas_sim/scenarios/frontera-scenario-fss198678-n100-s50000-t1778624347993",
  "configTime": 1778925016262
}
